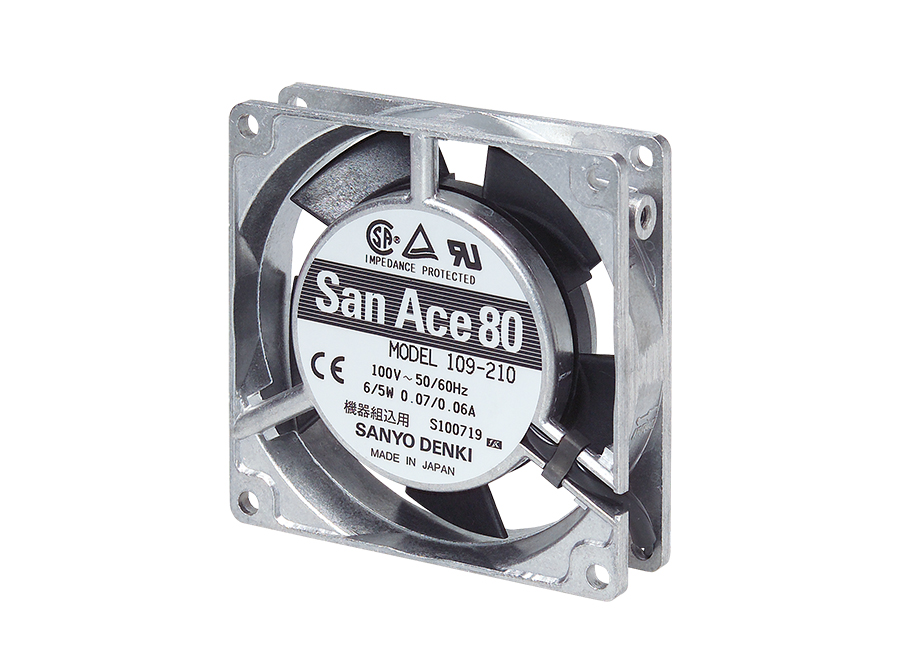

109S054
AC Fan – 109S
● No need of additional power supply
● Double ball bearings fan
● Locked rotor burnout protection
● Frame : Aluminum
● Impeller : Plastic Flammability UL 94V-1
-
Product category
-
Partner name
-
Series name
Attributes
Fan Shape
Fan ShapeSize (mm)
80*80*25Supply Voltage
230VACSensor Type
Without Sensor
| Fan Shape | Axial | Size – mm | 80×80×25 | Supply Voltage | 230VAC |
| Sensor Type | Without Sensor | Max. Airflow – m3/min | 0.63/0.76 | Max. Airflow – CFM | 22.3/26.9 |
| Max. Static Pressure – Pa | 27.5/38.3 | Max. Static Pressure – inch H2O | 0.11/0.154 | RPM | 2650/3100 |
| Noise Level – dB(A) | 30/33 | Operating Temperature – ℃ | -30 to +60 | Rated Current – Amp | 0.05/0.04 |
AC Axial 80*25 mm, 230VAC, 50/60 Hz, 0.05/0.04 A, Max. Airflow 0.63/0.76 m3/min or 22.3/26.9 CFM, Max. Static Pressure 27.5/38.3 Pa or 0.11/0.154 inchH2O, RPM 2650/3100, 30/33 dB, 2 wire,without sensor, 25000/60°C(56000/40°C), -30 to +60 °C.
