4R16-16A2-DFSV-00

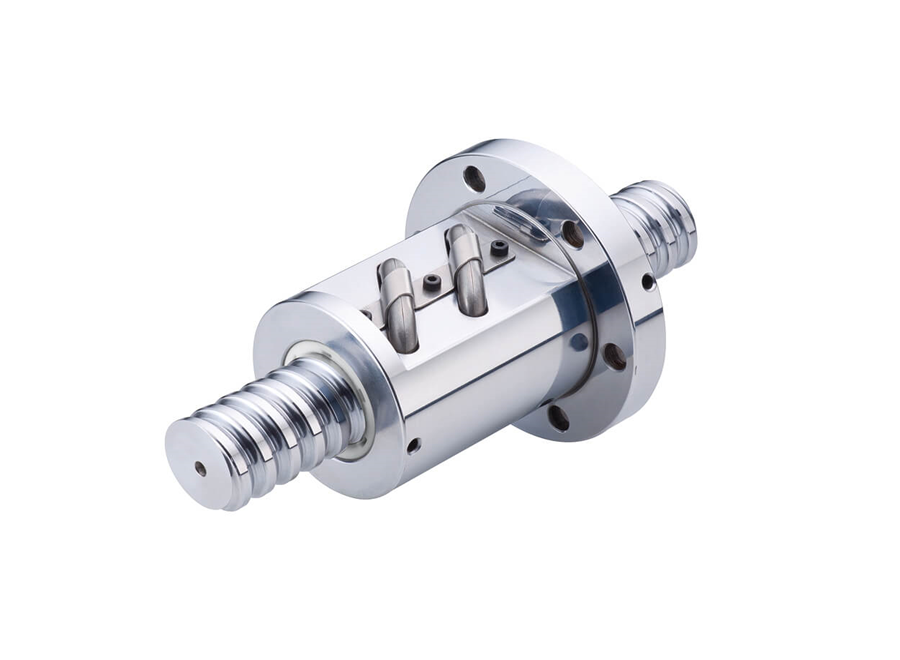

Rolled ball screw DFSV Type Nut
● Ball screw Dia 16
● Pitch 16
● Double cut flange
● Ball dia 3.175
-
Product category
-
Partner name
-
Series name
Attributes
Ball Screw Type
RolledNut type
DFSVDiameter
16Pitch
16No. of turn
A2Ball screw length
NADirection
Right
| Ball screw Type | Rolled Ball Screw | Diameter | 16 | Pitch | 16 |
| No. of turns | A2 | Type Nut | DFSV | Ball screw length | NA |
| Direction | Right | Pricision | – | Load (kgf) | 950 |
The Selection procedure of the ballscrew from known design operation condition and ballscrew parameters leads machine manufacturers easily integrate it according to speed and load carrying capacity.Ballscrew selection more rely on its Nut type,diameter,various types of Load with Stiffness and rotating speed of Ball screw
The DFSV Model is High Lead Type ball screw with (D)Double start, (F)flange end,(S)single nut, (V)tube above the nut diameter
