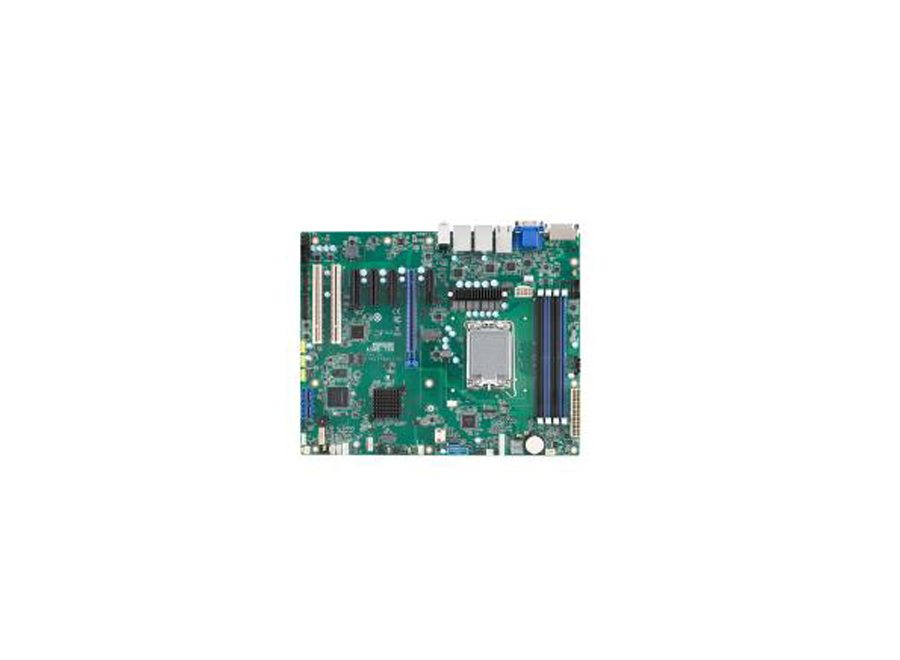

ASMB-788
LGA 1700 Intel® 12th Gen. Core™ ATX Server Board
● LGA 1700 Intel® 12th Gen. Core™ i9/i7/i5/i3 processors with W680 chipset
● DDR5 ECC/Non-ECC 4400/4000/3600 MHz UDIMM up to 128 GB
● One PCIe x16 (Gen 5) and four PCIe x4 (3 x Gen 4 & 1 x Gen 3) slots
● Triple displays – DVI-D, VGA, and HDMI 2.0 ports
● Four SATA 3 ports and seven USB 3.2 ports
-
Product category
-
sub-category
-
Partner name
-
Series name
Attributes
- No Attributes Found.
| Form Factor | ITC | Processor | Intel® 12th Gen. Core™ i9/i7/i5/i3 processors |
RAID Support | NO |
| RAM | Total slots 4 x (Dual Channel) Max. capacity 128 GB Memory type DDR5 ECC/Non- ECC 4400/4000/3600 MHz UDIMM (288-pin)* Memory size 8 GB, 16 GB, 32 GB |
SATA | SATA controller Intel® W680: 4 SATA3 6 Gb/s ports with Intel Rapid Storage Technology support (for Windows only) (Supports software RAID 0, 1, 10, & 5) |
Expansion Slot | Total PCI/PCIe slots 7 Slot location 1 PCI slot Slot location 2 PCI slot Slot location 3 PCIe x 4 slot (Gen 4 x4 link) Slot location 4 PCIe x 4 slot (Gen 3 x4 link) Slot location 5 PCIe x 4 slot (Gen 4 x4 link) Slot location 6 PCIe x 16 slot (Gen 5 x16 link) Slot location 7 PCIe x 4 slot (Gen 4 x4 link) |
| I/O | External serial port 1 (via COM cable in the package) External USB port 4 x (USB 3.2 Gen 2) VGA port 1 x(Resolution up to 1920 x 1200 @ 60 Hz)DVI port 1 x (Resolution up to 1920 x 1200 @ 60 Hz) HDMI port 1 x (Resolution up to 4096 x 2160 @ 60 Hz) RJ-45 2 for G2 version; 4 for G4 version Audio connector 2 x (Mic-in, Line-out) |
Network | Interface 10/100/1000 Mbps Controller GbE LAN1: Intel® I219; GbE LAN 2~4: Intel® I210-AT Connector RJ-45 x 2 for G2 version; RJ-45 x 4 for G4 version |
Display Port | VGA port 1 x (Resolution up to1920 x 1200 @ 60 Hz) DVI port 1 x (Resolution up to 1920 x 1200 @ 60 Hz) HDMI port 1 x (Resolution up to 4096 x 2160 @ 60 Hz) |
| Max Resolution | 4096 x 2160 | Graphics | Controller Intel® HD Graphics VRAM 1 GB maximum shared memory with 2 GB and above system memory installed |
Watchdog Timer | Programmable 1 ~ 255 sec |
● LGA 1700 Intel® 12th Gen.
● Core™ ATX Server Board with 4 x DDR5, 5 x PCIe (1 x Gen 5, 3 x Gen 4, 1x Gen 3),
● 7 x USB 3.2, 4 x SATA3,
● Quad/Dual LANs, and IPMI ,
● One M.2 2280 (PCIe x4)
● Rackmount optimized placement with positive air flow design,
● 0 ~ 60 °C (32 ~ 140 °F) ambient operating temperature range.
