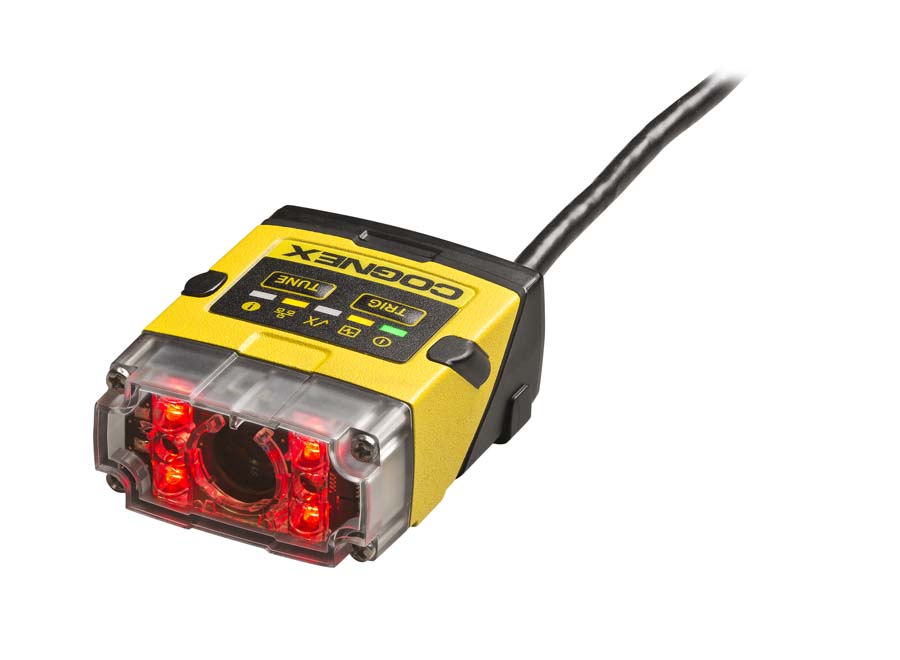

DMR-152Q-MAX
DM152Q ID RDR W/6.2MM LL&RD LD
● DataMan 150Q with Liquid Lens Module
● 1-D and 2-D Code Reader
● 1280×960 Resolution
● 6.2 mm Liquid Lens
-
Product category
-
sub-category
-
Partner name
-
Series name
Attributes
Code Reader Type
Fixded MountResolution
1.2MPCommunication
RS232 / USBLens
6.2 mmLens Type
Auto Focus
| Algorithms | 1DMax, 2DMax | Image Resolution | 1280 x 960 Global shutter | Maximum Acquisition Speed | 45 fps |
| Max Decode Rate | 45/second | Lens | 6.2 mm Liquid Lens | Discrete Inputs | 2 opto-isolated |
| Discrete Outputs | 2 opto-isolated | Lighting | Four Independently Controled, High-power LEDs |
Communications Protocols | RS-232 and USB Interface |
| Power | 5–26 VDC, 2.5 W (USB bus power option) |
Material | Aluminum | Protection | IP65 |
● IDMax Algorithm for reading hard to read, direct part marks (DPM) 2-D codes
● IDQuick algorithm for high speed decoding of well formed 2-D codes with uniform backgrounds
● 1DMax with HotBars II for 1-D Linear and Stacked BarCodes
● Up to 45 Decodes per Second
● Integrated Red LED with aimer
● 6.2mm Lens with Liquid Lens Module, AutoFocus from 50mm – 200mm
● USB and RS232 Communications
