DMR-70Q-0110

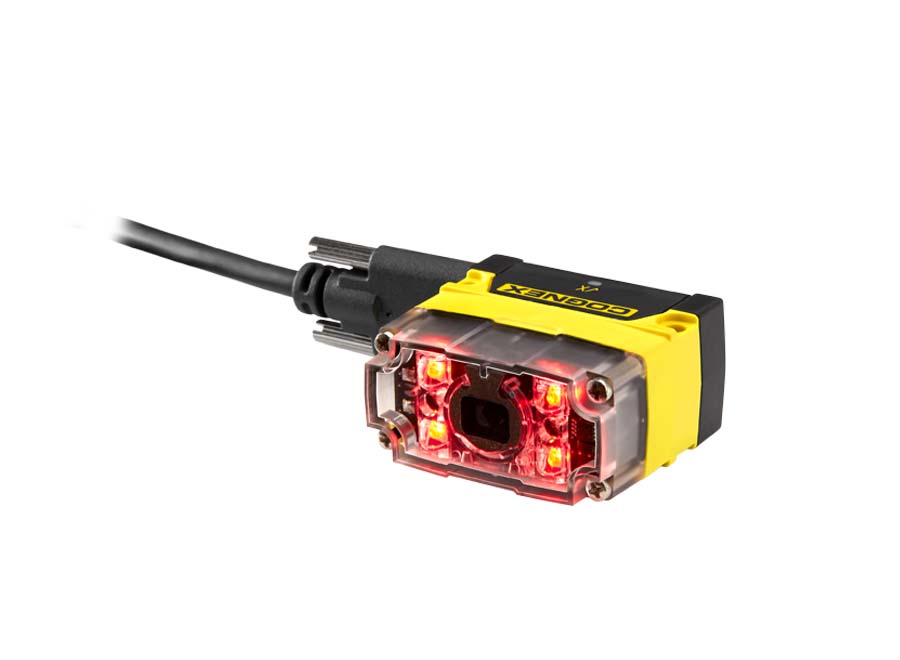

 DataMan 70Q Short Range ID Reader

 ● 1-D & 2-D Code Reading

 ● 1DMax+™ with Hotbars™

 ● Up to 45 decodes per second

 ● 6.2 mm, 3 position Manual Lens

Attributes

  • Code Reader Type

    Fixded Mount
  • Resolution

    0.3MP
  • Communication

    USB
  • Lens

    6.2 mm
  • Lens Type

    Fixed Focus
SKU: DMR-70Q-0110 Category:
Algorithms 1DMax, Hotbars, IDQuick Image Resolution 752 x 480 global shutter Maximum Acquisition Speed 60 fps
Max Decode Rate 45/second Lens 6.2 mm, 3 position
Manual Lens
Discrete Inputs 1 Trigger(Optional)
Discrete Outputs 1 Output (Optional) Lighting 4 independently
controlled red LEDs
Communications Protocols Integrated USB-C
Power 5 VDC–24 VDC or
USB Bus powered, 2.5W
Material Plastic (polycarbonate) Protection IP65

● 752 x 480 resolution

● 6.2mm F7 lens, Manual 3-Pos. Short range (40mm,65mm,105mm)

● Plastic clear front cover with red LEDs

● Integrated USB-C, Optional serial communication with accessory

● Compact design: 22.2mm (H) x 38.6mm (L) x 42.4 (W)

● IP65 Rated with IP65 Cable

Download Datasheet
Download Catalogue
