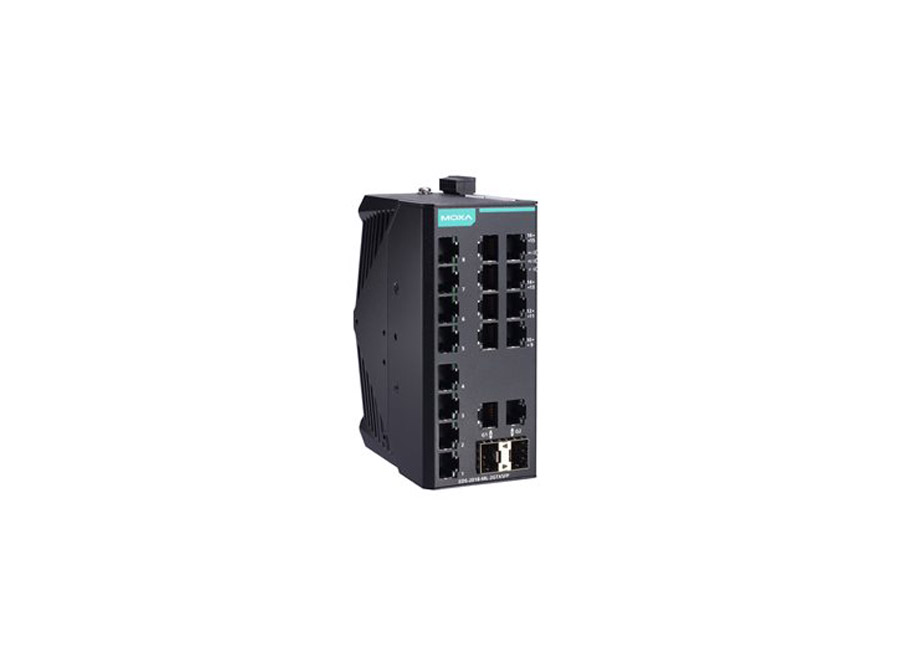

EDS-2018-ML-2GTXSFP-T

Switch Type	Unmanaged Switches	Ethernet Interface	1610/100BaseT(X)Ports, RJ45 Connector	Fiber Port	–
PoE Ports	–	Combo Ports	2 Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)	Input Voltage	12/24/48 VDC, Redundant dual inputs
Operating Voltage	9.6 to 60 VDC	Mounting	DIN-rail mounting, Wall mounting (with optional kit)	Dimensions	58 x 135 x 95 mm (2.28 x 5.31 x 3.74 in)
Weight	683 g (1.51 lb)	Housing	Metal	Operating Temperature	-40 to 75°C
Warranty Period	5 years

The EDS-2018-ML series of industrial Ethernet switches have sixteen 10/100M copper ports and two 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, which are ideal for applications that require high-bandwidth data convergence. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2018-ML Series also allows users to enable or disable the Quality of Service (QoS) function, broadcast storm protection, and port break alarm function with DIP switches on the outer panel

The EDS-2018-ML Series has 12/24/48 VDC redundant power inputs, DIN-rail mounting, and high-level EMI/EMC capability. In addition to its compact size, the EDS-2018-ML Series has passed a 100% burn-in test to ensure it will function reliably in the field. The EDS-2018-ML Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available

2 Gigabit uplinks with flexible interface design for high-bandwidth data aggregation
