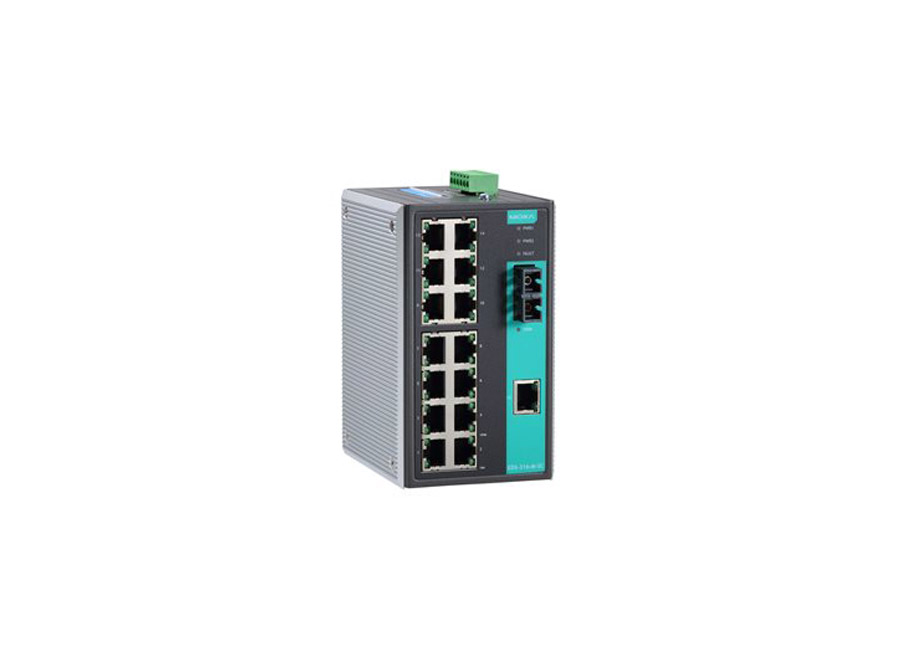

EDS-316-M-SC
16-port unmanaged Ethernet switches
● Relay output warning for power failure and port break alarm
● Broadcast storm protection
● Auto negotiation speed
● Full/Half duplex mode
● -40 to 75°C operating temperature range (-T models)
-
Product category
-
sub-category
-
Partner name
-
Series name
Attributes
Ethernet Port
15Fiber Port
1
| Switch Type | Unmanaged Switches | Ethernet Interface | 15 10/100BaseT(X) Ports RJ45 Connector |
Fiber Port | 1 100BaseFX Ports Multi-Mode, SC Connector |
| PoE Ports | – | Combo Ports | – | Input Voltage | 12/24/48 VDC, Redundant dual inputs |
| Operating Voltage | 9.6 to 60 VDC | Mounting | DIN-rail mounting, Wall mounting (with optional kit) |
Dimensions | 80.1 x 135 x 105 mm (3.15 x 5.31 x 4.13 in) |
| Weight | 1140 g (2.52 lb) | Housing | Metal | Operating Temperature | -10 to 60°C (14 to 140°F) |
| Warranty Period | 5 years |
The EDS-316 Ethernet switches provide an economical solution for your industrial Ethernet connections. These 16-port switches come with a built-in relay warning function that alerts network engineers when power failures or port breaks occur. In addition, the switches are designed for harsh industrial environments, such as the hazardous locations defined by the Class 1 Div. 2 and ATEX Zone 2 standards
The switches comply with FCC, UL, and CE standards and support either a standard operating temperature range of -10 to 60°C or a wide operating temperature range of -40 to 75°C. All switches in the series undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The EDS-316 switches can be installed easily on a DIN rail or in a distribution box
