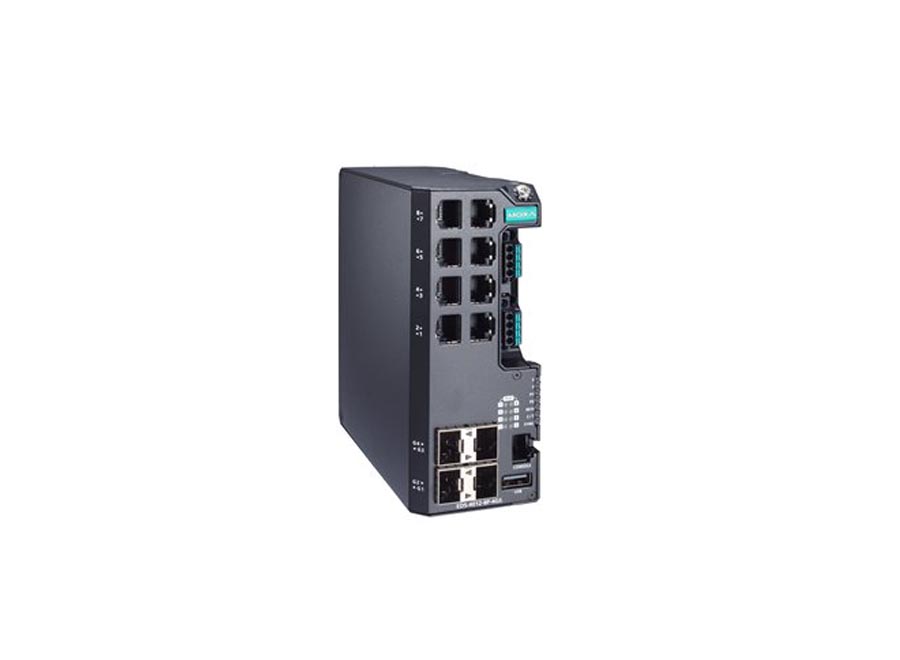

EDS-4012-8P-4GS-LVA
8+4G-port managed Ethernet switches
● Developed according to the industrial cybersecurity standards
● Support for IEEE 802.3bt PoE for up to 90 W output per port
● Turbo Ring and Turbo Chain and RSTP/STP for network redundancy
● Wide range of power input options for flexible deployment
● Compact and flexible housing design to fit into confined spaces
● Supports MXstudio for easy, visualized industrial network management
-
Product category
-
sub-category
-
Partner name
-
Series name
Attributes
PoE Port
8
| Switch Type | Layer 2 Managed PoE Switches |
Ethernet Interface | – | Fiber Port | – |
| PoE Ports | 8 PoE Ports (10/100BaseT(X), RJ45 connector) |
Combo Ports | – | Input Voltage | 48 VDC, Redundant dual inputs |
| Operating Voltage | 44 to 57 VDC (>52 VDC for PoE+ output recommended) |
Mounting | DIN-rail mounting, Wall mounting (with optional kit) |
Dimensions | 55 x 140 x 120 mm (2.17 x 5.51 x 4.72 in) |
| Weight | 827 g (1.82 lb) | Housing | Metal | Operating Temperature | -10 to 60°C (14 to 140°F) |
| Warranty Period | 5 years |
The EDS-4012 Series is a range of 12-port managed Fast Ethernet switches with the option for four 1 Gbps fiber-optic uplink ports. This Series also offers models with four 10/100BaseT(X) 802.3af (PoE), 802.3at (PoE+), and 802.3bt-compliant Ethernet PoE port options to connect high-bandwidth PoE devices
Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, and RSTP/STP increase the reliability of your system and improve the availability of your network backbone. The EDS-4012 Series is designed specifically for demanding applications such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone
The EDS-4012 Series is compliant with the IEC 62443-4-2 and IEC 62443-4-1 Industrial Cybersecurity certifications, which cover both product security and secure development life-cycle requirements, helping our customers meet the compliance requirements of secure industrial network design
● Developed according to the IEC 62443-4-1 and compliant with the IEC 62443-4-2 industrial cybersecurity standards
● Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
