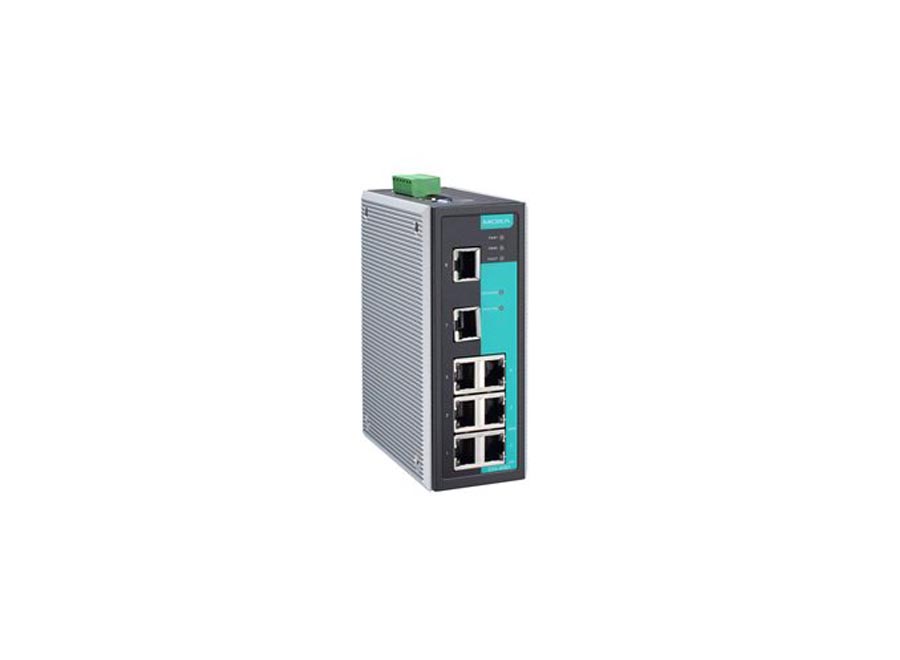

EDS-408A-PN
8-port entry-level managed Ethernet switches
● Turbo Ring and Turbo Chain
● IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
● Easy network management by web browser
● PROFINET or EtherNet/IP enabled by default (PN or EIP models)
● Supports MXstudio for easy, visualized industrial network management
-
Product category
-
sub-category
-
Partner name
-
Series name
Attributes
Ethernet Port
8
| Switch Type | Layer 2 Managed Switches |
Ethernet Interface | 8 10/100BaseT(X) Ports RJ45 Connector |
Fiber Port | – |
| PoE Ports | – | Combo Ports | – | Input Voltage | 12/24/48 VDC, Redundant dual inputs |
| Operating Voltage | 9.6 to 60 VDC | Mounting | DIN-rail mounting, Wall mounting (with optional kit) |
Dimensions | 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) |
| Weight | 650 g (1.44 lb) | Housing | Metal | Operating Temperature | -10 to 60°C (14 to 140°F) |
| Warranty Period | 5 years |
The EDS-408A Series is designed especially for industrial applications. The switches support a variety of useful management functions, such as Turbo Ring, Turbo Chain, ring coupling, IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay. The ready-to-use Turbo Ring can be set up easily using the web-based management interface, or with the DIP switches located on the top panel of the EDS-408A switches
● Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
● Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
