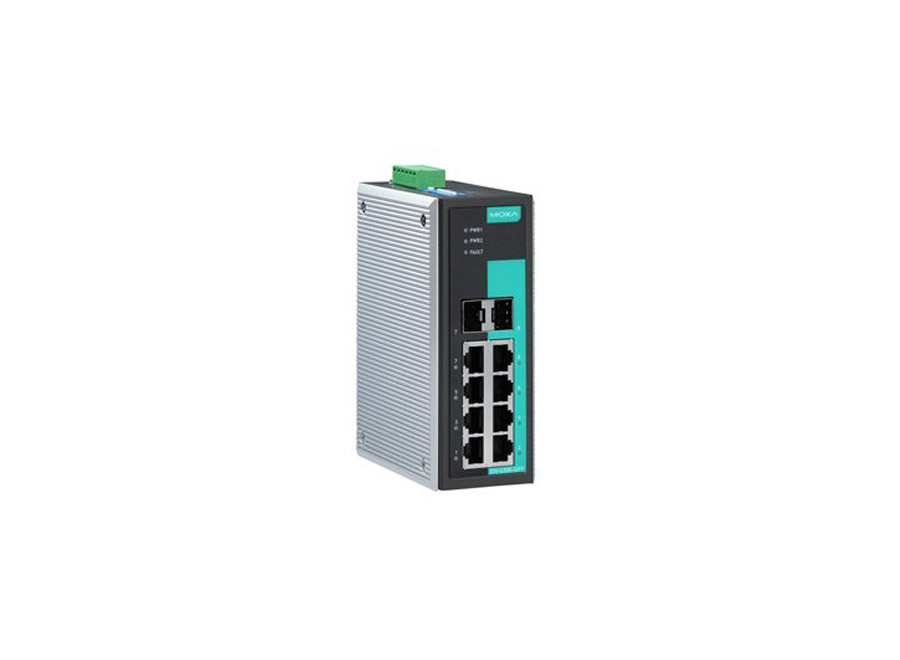

8G-port full Gigabit unmanaged Ethernet switches

 ● Fiber-optic options for extending distance

 ● Redundant dual 12/24/48 VDC power inputs

 ● Supports 9.6 KB jumbo frames

 ● Relay output warning for power failure and port break alarm

 ● Broadcast storm protection

 ● -40 to 75°C operating temperature range (-T models)


  • Ethernet Port

  • Combo Port

SKU: EDS-G308-2SFP-T Category:
Switch Type Unmanaged Switches Ethernet Interface 610/100/1000BaseT(X)
Ports RJ45 Connector
Fiber Port
PoE Ports Combo Ports 2 Combo Ports
or 100/1000BaseSFP
Input Voltage 12/24/48 VDC,
Redundant dual inputs
Operating Voltage 9.6 to 60 VDC Mounting DIN-rail mounting,
Wall mounting
(with optional kit)
Dimensions 52.85 x 135 x 105 mm
(2.08 x 5.31 x 4.13 in)
Weight 880 g (1.94 lb) Housing Metal Operating Temperature -40 to 75°C
Warranty Period 5 years

The EDS-G308 switches are equipped with 8 Gigabit Ethernet ports and 2 fiber-optic ports, making them ideal for applications that demand high bandwidth. The EDS-G308 switches provide an economical solution for your industrial Gigabit Ethernet connections, and the built-in relay warning function alerts network managers when power failures or port breaks occur. The 4-pin DIP switches can be used for controlling broadcast protection, jumbo frames, and IEEE 802.3az energy saving. In addition, 100/1000 SFP speed switching is ideal for easy on-site configuration for any industrial automation application

A standard-temperature model, which has an operating temperature range of -10 to 60°C, and a wide-temperature range model, which has an operating temperature range of -40 to 75°C, are available. Both models undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The switches can be installed easily on a DIN rail or in distribution boxes

Fiber-optic options for extending distance and improving electrical noise immunity

Download Datasheet
Download Catalogue
