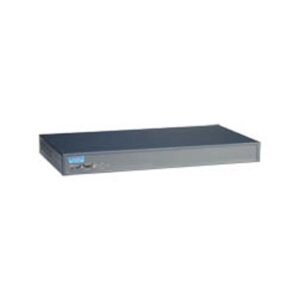

EKI-1528N
8-port RS-232/422/485 Serial Device Server – AC Input, Serial RJ45, Rackmount
● Automatic RS-485 data flow control
● Supports up to 976.5 kbps, and any baud rate setting
● Provides 2 x 10/100/1000 Mbps Ethernet ports for LAN redundancy
● Provides COM port redirection (Virtual COM), TCP and UDP operation modes
● Provides rich configuration methods: Windows utility, Telnet console, Web Browser, and Serial console
● Built-in 15 KV ESD protection for all serial signals
-
Product category
-
Partner name
-
Series name
Attributes
Device Type
Serial Device ServerSerial Port
8Ethernet Port
2WAN/Cellular
No
| Type | Serial Device Server | Serial Port | 8-port RS-232/422/485 | Ethernet Port | 2 x 10/100/1000 Mbps |
| Communication Protocol |
ARP, ICMP, IPv6, TCP, UDP, BOOTP/DHCP Client, Auto IP, Telnet, SNMP, HTTP,DNS, SMTP, NTP |
Mounting | Rack | Power Supply | 12 -48 VDC |
The EKI-1528 and EKI-1526 are industrial-grade network-based serial device servers for connecting up to 8 or 16 serial RS-232/422/485 devices, such as CNCs, PLCs, scales and scanners, directly to a TCP/IP network. The EKI-1528 and EKI-1526 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. The EKI-1528 and EKI-1526 provide a simple and cost-effective way to bring the advantages of remote management and data accessibility to thousands of devices that can't connect to an Ethernet network. The EKI-1528 and EKI-1526 offer multiple ways to configure through Windows utility, Web Browser, serial console or Telnet console, these methods make it easy manage many EKI-1528 and EKI-1526 or serial devices on your network, Built-in buzzer for easy location, SNMP MIB-II for network management, 8-port RS-232/422/485 serial communication.
