EKI-2528I
8FE Unmanaged Ethernet Switch, -40~75?
● Provides 5/8 Fast Ethernet ports with Auto MDI/MDI-X
● Supports 10/100 Mbps Auto-Negotiation
● Provides compact size with DIN-rail/Wall mount, and IP30 metal mechanism
● Supports redundant 12 ~ 48 VDC power input and P-Fail relay
● Supports wide operating temperatures from -40 to 75°C
-
Product category
-
Partner name
-
Series name
Attributes
Type
Unmanaged Ethernet SwitchesFast Ethernet
YesGiga Ethernet
NoFiber Port
No
| Type | Unmanaged Ethernet Switches |
LAN | 8 x 10/100Base-T(X) | Optical Fiber | NA |
| Connectors | 8 x RJ45 (EKI-2528) or 5 x RJ45 (EKI-2525) 6-pin removable screw terminal (power & relay) |
Transmission Distance |
100 m | Transmission Speed | 100 Mbps |
| Standard | IEEE 802.3, 802.3u, 802.3x | LED Indicators | P1, P2, P-Fail 10/100T (X): Link/Activity, Duplex/Collisionl |
Protocol Support | NA |
| Switch Properties | NA | Power Supply | 12 ~ 48 V DC, redundant dual inputs |
Certification | Safety : UL 62368 EMI : CE, FCC Class A EMS : EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-8 Shock IEC 60068-2-27 Freefall IEC 60068-2-32 Vibration IEC 60068-2-6 |

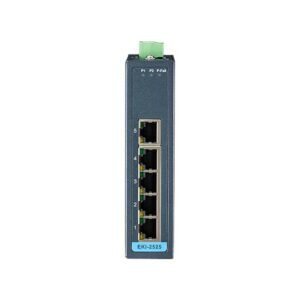

The EKI-2525/2528 supports a Fast Ethernet solution. The power is a 12 ~ 48 VDC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Resetable Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. As the power supply turns normal, EKI-2525/2528 will automatically get back to work. Each port of EKI-2525/2528 has 2 LED’s to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, and have troubleshooting easy and quick. EKI-2525/2528 comes with compact metal housing that rates IP30 to help against from dusty industrial environments
