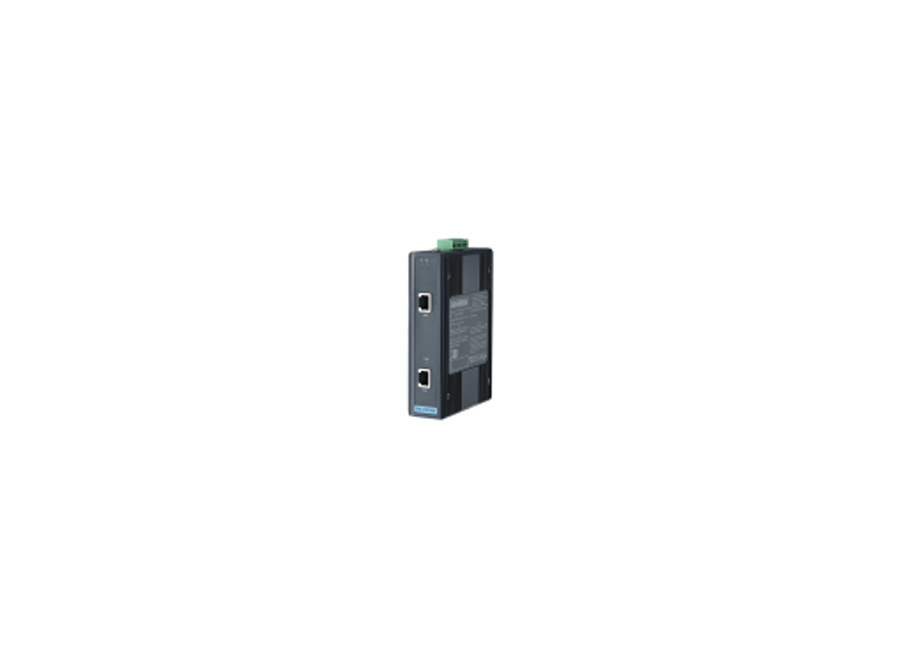

EKI-2701HPI
1GE PoE Injector, IEEE802.3af/at, 24~48VDC, -40~75?
● Supports 10/100/1000Base-T (X) for PoE+ OUT and Data IN
● IEEE 802.3af/at compliant, supports a full 30 watt output
● Power input (24 ~ 48 VDC), inject 30 W for each port
● Provides slim size and DIN-rail/Wall mount with IP30 metal mechanism
● Supports operating temperatures from -40 to 75°C
-
Product category
-
Partner name
-
Series name
Attributes
Type
Industrial PoE Switches & SolutionsFast Ethernet
NoGiga Ethernet
NoFiber Port
No
| Type | PoE Switches | LAN | 10/100/1000 Base-TX | Optical Fiber | NA |
| Connectors | PoE OUT: RJ45 DATA IN: RJ45 6-pin removable screw terminal |
Transmission Distance |
100 m | Transmission Speed | 1000 Mbps |
| Standard | IEEE 802.3, 802.3u, 802.3x, 802.3af/at, 802.3ab |
LED Indicators | PWR1, PWR2, PoE status, Link/Activity |
Protocol Support | NA |
| Switch Properties | NA | Power Supply | 24 ~ 48 V DC, redundant dual power inputs |
Certification | Safety : UL508 (EKI-2701HPI) EMI : FCC Part 15 Subpart B Class A, EN 55022 Class A EMS : EN 61000-4-2 |
