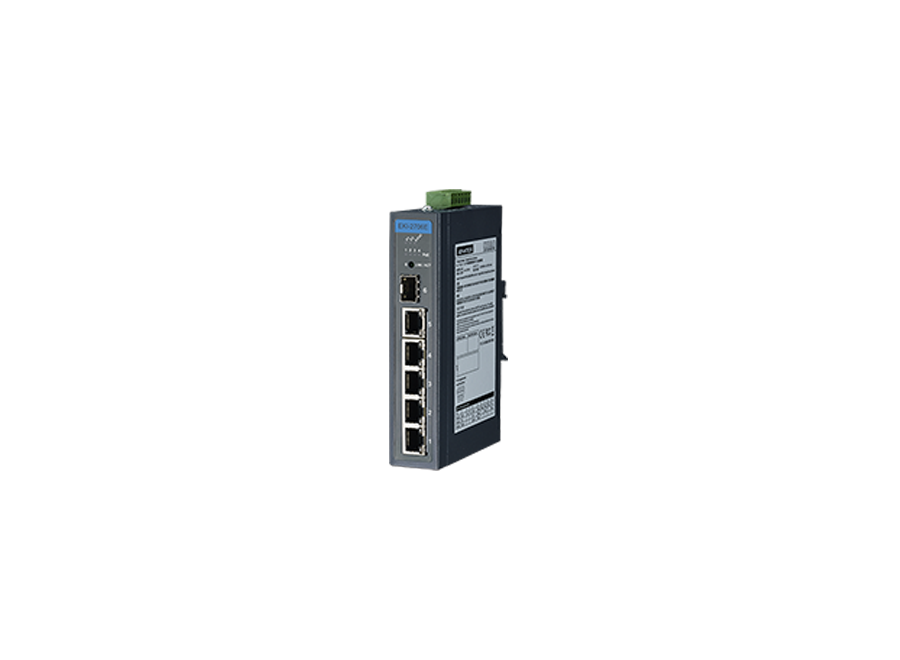

EKI-2706E-1GFP

Type	PoE Switches	LAN	5 X 100/1000Mbps	Optical Fiber	NA
Connectors	5 x RJ-45 + 1 x SFP 6-pin removable screw terminal (power & relay)	Transmission Distance	100 m	Transmission Speed	1000 Mbps
Standard	IEEE 802.3, 802.3u, 802.3x, 802.1ab, 802.1z	LED Indicators	P1, P2, P-Fail Link / Speed / Activity	Protocol Support	NA
Switch Properties	4FE PoE+1GE+1G SFP Unmanaged Industrial PoE Switch	Power Supply	48 V DC	Certification	Safety : UL 62368 EMI : CE, FCC Class A EMS : EN 61000-4-2

The EKI-2706 series support 48VDC redundant power input and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Fuse. The EKI-2706 series support up to 4-port IEEE 802.3 af/at PoE /PoE ports, it is more convenient for users to power up their devices. Each port of EKI-2706 has 2 LED’s to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, and have troubleshooting easy and quick. EKI-2706 comes with compact metal housing that rates IP30 to help against from dusty industrial environments
