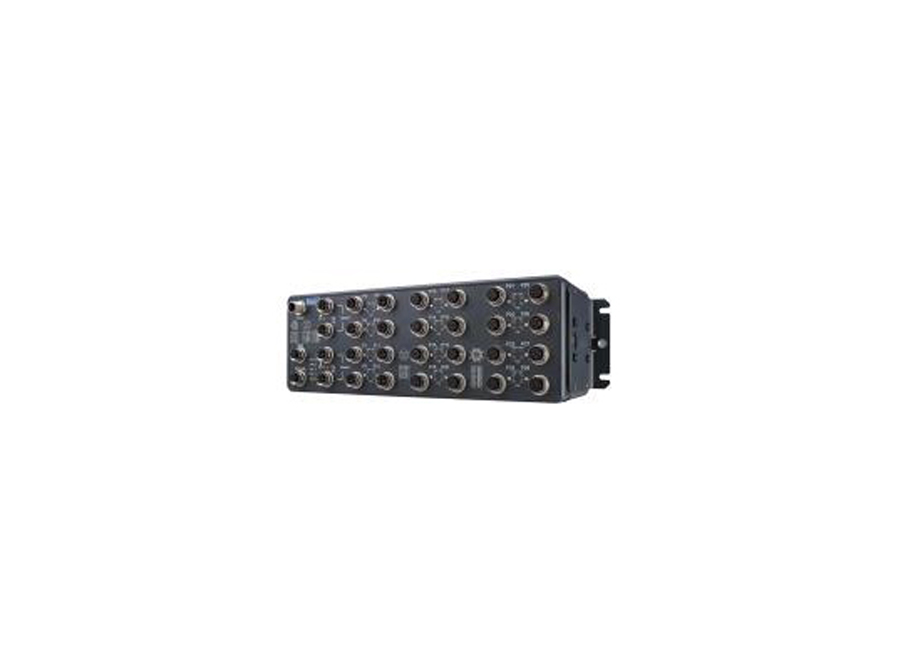

EKI-9528E-12GMX
EN50155 Managed Ethernet Switch with 16xFE+12xGE, 24-110VDC
● M12 connector with ruggedized IP54 certified housing
● Complies with EN50155 and EN50121-3-2 standards
● Wide nominal power input range: 24 ~ 110VDC
● Operating power input range: 16.8 ~ 137.5VDC
● X-Ring Pro delivers rapid and predictable convergence
-
Product category
-
Partner name
-
Series name
Attributes
Type
EN50207 Ethernet SwitchesFast Ethernet
NoGiga Ethernet
NoFiber Port
No
| Type | EN50155 Unmanaged Ethernet Switch |
LAN | 12 X 10/100/1000BASE-T | Optical Fiber | NA |
| Connectors | M12 K-coded connector | Transmission Distance |
NA | Transmission Speed | NA |
| Standard | NA | LED Indicators | PWR1, PWR2, SYS,R.M., and Alarm |
Protocol Support | NA |
| Switch Properties | NA | Power Supply | 16.8 ~ 137.5VDC | Certification | Safety : EN62368-1 EMC : CE EN55011/ 55032/ 55024; FCC Part 15 Subpart B class A EMS : EN61000-4-2(ESD); EN61000-4-3(RS); EN61000-4-4(EFT); EN61000-4-5(Surge); EN61000-4-6(CS) |
