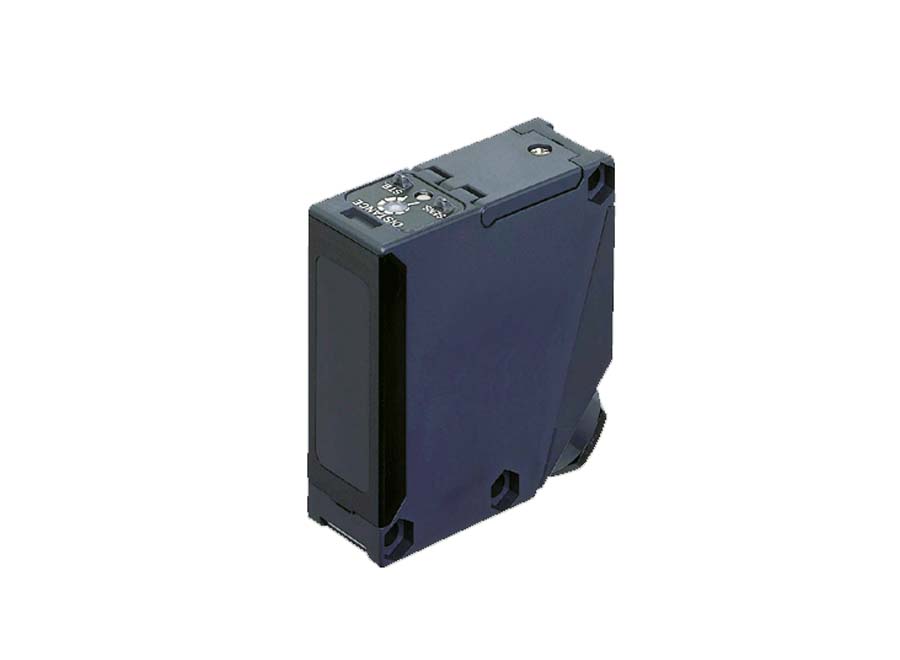

EQ-501

 Long range sensing capability to 2.5 m

 ● Diffuse Photoelectric Sensor

 ● Sensing Range: 0.1 to 2.5 m

 ● Output: Relay Contact 1a

 ● Terminal Connection

Attributes

  • Sensor Type

    Diffuse
  • Shape

    Rectangular
  • Sensing Range

    0.1 to 2.5 m
  • Output

    Relay Contact 1a
  • Emitting Element

    Infrared LED
  • Connection Type

    Terminal Connection
SKU: EQ-501 Category:
Type Diffuse Shape Rectangular Sensing Range 0.1 to 2.5 m
Repeatability Output Relay Contact 1a Output Operation L-ON / D-ON Selectable
Input supply 24 to 240 VAC Or 12 to 240 VDC Emitting Element Infrared LED Connection Type Terminal Connection
Sensing Object Size Timer Function No Response Time < 20 ms
Enclosure ABS Protection IP67 (IEC) Sensitivity adjuster
Particular Characteristics

Long range sensing capability to 2.5 m, Stable sensing unaffected by color or material. The optical system has been optimized. Since the sensor is hardly influenced at all by angles or the gloss of objects compared to the previous model, it is possible to detect both white objects and black objects at almost a constant distance. Because the sensor doesn’t detect objects outside the preset sensing field by using the 2-segment photodiode adjustable range system, it will not malfunction even if someone walks behind the sensing object or machines or conveyors are in the background. Cabling is enabled by way of a terminal block that eliminates waste. Equipped with a 2-turn adjuster with indicator, making it easy to set for short or long distances.

Download Datasheet
Download Catalogue
