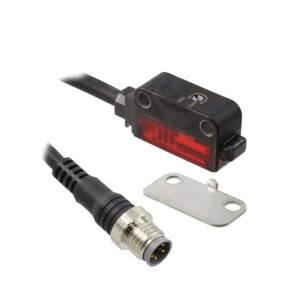

EX-L221-P

Type	Diffuse	Shape	Rectangular	Sensing Range	45 to 300 mm
Repeatability	0.02 mm	Digital Dispaly	–	Output	PNP
Output Operation	L-ON / D-ON Selectable	Input supply	12 to 24 VDC	Emitting Element	Red Semiconductor Laser Class 1
Connection Type	Fixed Cable, 2m	Sensing Object Size	> ø0.01 mm	Beam Spot Diameter	ø1 mm at 300 mm
Timer Function	–	Response Time	< 0.5 ms	Enclosure	Polybutylene terephthalate
Protection	IP67 (IEC)	Particular Characteristics	Minute Object Detection

Due to the customized IC and optical design, high precision detection is fulfilled with directivity and visibility achievable only by laser. The laser adopted is Class 1 (IEC / JIS / FDA / GB) laser that is safe to use, so that there is no need to separate the areas of sensor usage. Light aberrations are reduced and a high definition laser spot is possible by incorporating a molded aspheric glass lens. Due to convergent distance sensing, the background has very little effect, enabling stable sensing. Sensitivity adjuster allows you to adjust sensitivity to avoid sensing background objects when the distance between the workpiece and background objects is small. Able to reliably sense unevenly-colored workpieces. The sensor can be used even in environment where water or dust present because of its protection structure IP67
