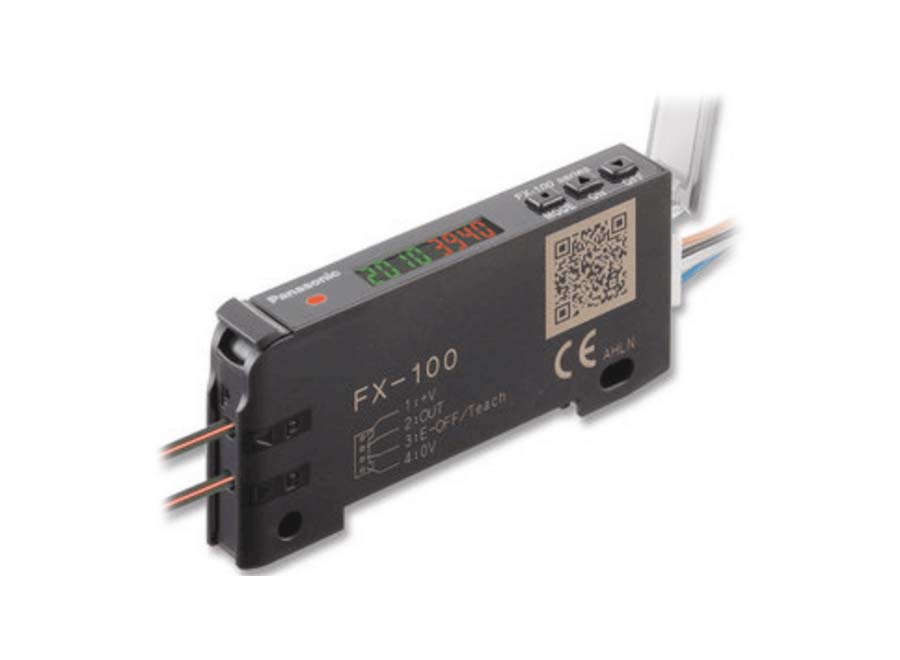

FX-102P-CC2
Digital Display Type Fiber Amplifier
● PNP o/p
● Response Time : 2.5ms
● Red LED Type
● With 2m supply Cable
-
Product category
-
sub-category
-
Partner name
-
Series name
Attributes
Sensor Type
Fiber Sensor AmplifierOutput
PNPResponse Time
2.5 msConnection Type
2.5 msEmitting Element
Red LED
| Type | Fiber Sensor Amplifier | Shape | Rectangular | Sensing Range | – |
| Sensing Width | – | Digital Display | Yes | Output | PNP |
| Output Operation | L-ON / D-ON Selectable | Input supply | 12 to 24 VDC | Emitting Element | Red LED |
| Bending Radius | – | Connection Type | Connector Type | Beam Spot Diameter | – |
| Timer Function | Yes | Response Time | 2.5 ms | Sensitivity setting | 2-point teaching / Limit teaching / Full-auto teaching |
| Enclosure | Polycarbonate | Protection | – | Beam axis dia.(mm) | – |
| Beam axis position / Inclination of beam axis | – | Ambient temp. | – | Particular Characteristics | – |
The threshold value and incident light intensity can be both confirmed at the same time, bringing good operability when making changes to each setting. Very slim body at only 9 mm 0.354 in. This is much thinner than existing fiber sensors. In the Teaching process, simply press the ON key when an object is present, and OFF when it is not, and teaching is completed. Application demanding functions of emission amount setting, emission frequency setting & Threshold value follow-up cycle setting function are available.
