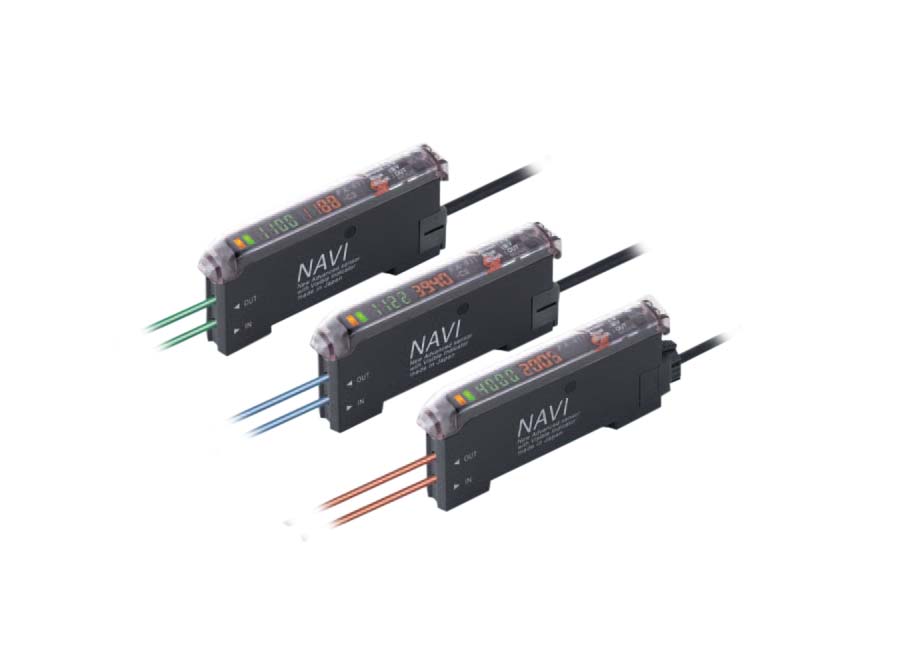

FX-411
Digital Display Type Fiber Amplifier
● NPN o/p
● Response Time: 150 µs
● Red LED Type
● Connector Type
-
Product category
-
sub-category
-
Partner name
-
Series name
Attributes
Sensor Type
Fiber Sensor AmplifierOutput
NPNResponse Time
150 µsConnection Type
150 µsEmitting Element
Red LED
| Type | Fiber Sensor Amplifier | Shape | Rectangular | Sensing Range | – |
| Sensing Width | – | Digital Display | Yes | Output | NPN |
| Output Operation | L-ON / D-ON Selectable | Input supply | 12 to 24 VDC | Emitting Element | Red LED |
| Bending Radius | – | Connection Type | Connector Type | Beam Spot Diameter | – |
| Timer Function | Yes | Response Time | 150 µs | Sensitivity setting | Threshold value adjuster |
| Enclosure | Heat-resistance ABS | Protection | – | Beam axis dia.(mm) | – |
| Beam axis position / Inclination of beam axis | – | Ambient temp. | – | Particular Characteristics | – |
The incident light intensity and threshold value can be checked at the same time with no operations needed. In addition, no complex mode settings are needed when the values are adjusted. The threshold value adjuster and operation mode switch is large and easy to see, and they can be operated with the same sensitivity as general-purpose photoelectric sensors. Functions that are not commonly used can be operated using a non-obtrusive setting switch. This sensor uses the “Rotation Speed Sensitivity” adjuster with a compact encoder inside. The sensitivity amount changes depending on the rotation speed of the adjuster, so that adjustment can be carried out speedily. Equipped with OFF-delay / ON-delay / ONE SHOT timer. Key lock function, This prevents the operator from changing the threshold value by mistake.
