Series of mini step bipolar chopper drives

 ● Stepping motor drive open-frame step & direction type

 ● Highly compact (70×70×25 mm), easy to use, and cost effective solution

 ● This system is designed to be soldered to a PCB.


  • Voltage Supply

    DC Voltage
  • Voltage Range

    24 to 75 Vdc
  • Drive Type

    Open PCB
  • Version

    Step & Direction

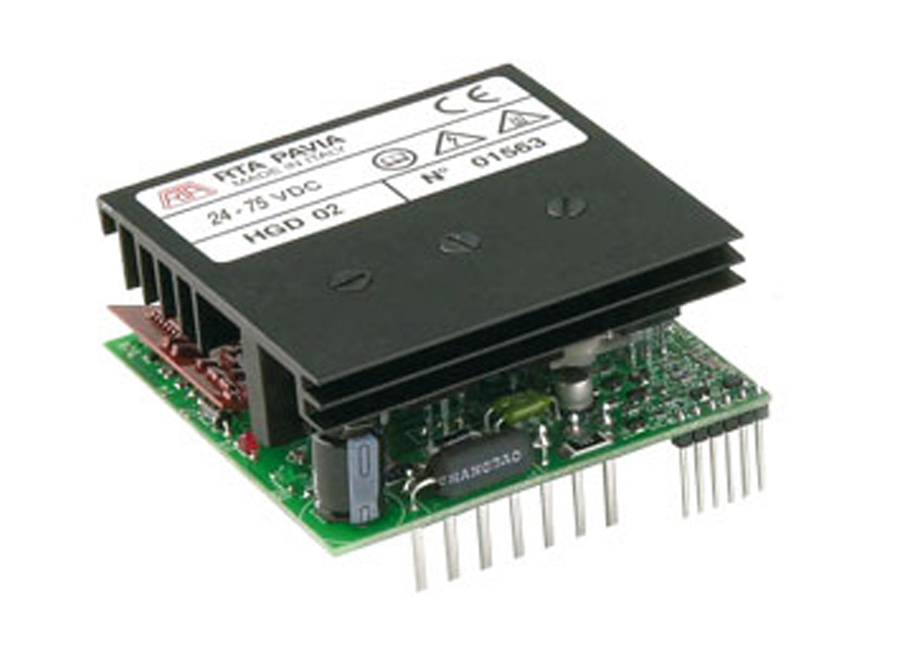

SKU: HGD02 Category:
Version Step & Direction Drive Type Open PCB Voltage Supply DC Voltage
Voltage Range 24 to 75 Vdc Current Range 0.75 A to 2.0 A Dimensions (mm) 70x70x25

● Microstepping function up to 3.200 step/rev.

● Separated solder type connectors for logic signals and power connections.

● Electronic damping facility for further acoustic noise and mechanic vibrations reduction at low and medium speed.

● Standard input and output signals ease interfacing with the most commonly used control systems and ensure high noise immunity.
