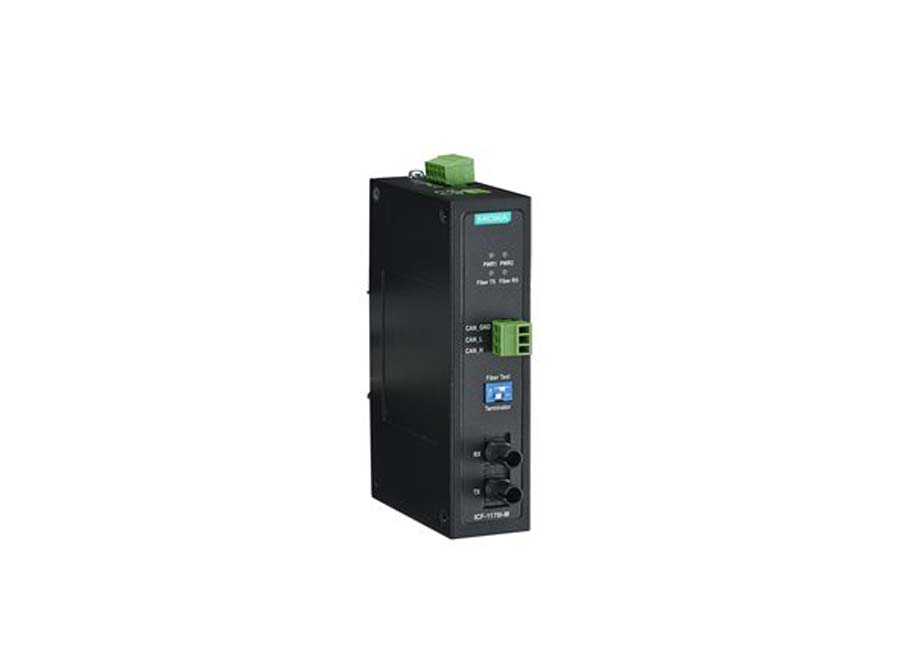

ICF-1170I-M-ST-T
Industrial CAN-to-fiber converters
● Transmits data up to 2 km over optical fiber
● Converts CAN signals to fiber and fiber to CAN signals
● Baudrate up to 1 Mbps
● Dual power inputs for redundancy
● DIP switch for 120 ohm terminal resistance
● DIP switch for fiber test mode
● LEDs for Fiber Tx, Fiber Rx, Power 1, Power 2
● Wide-temperature model available for -40 to 85°C environments
● Fully compatible with the ISO 11898 standard
-
Product category
-
sub-category
-
Partner name
-
Series name
Attributes
Conversion Type
CAN to FiberFiber Port
1
| Media Converters Type | Fieldbus-to-Fiber Converters | Ethernet Interface | – | Fiber Port | 100BaseFX ports (multi-mode ST connector) |
| PoE Ports | – | Combo Ports | – | Input Voltage | 12 to 48 VDC |
| IP | IP30 | Mounting | DIN-rail mounting | Dimensions | 30.3 x 70 x 115 mm (1.19 x 2.76 x 4.53 in) |
| Weight | 178 g (0.39 lb) | Housing | Metal | Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Warranty Period | 5 years |
