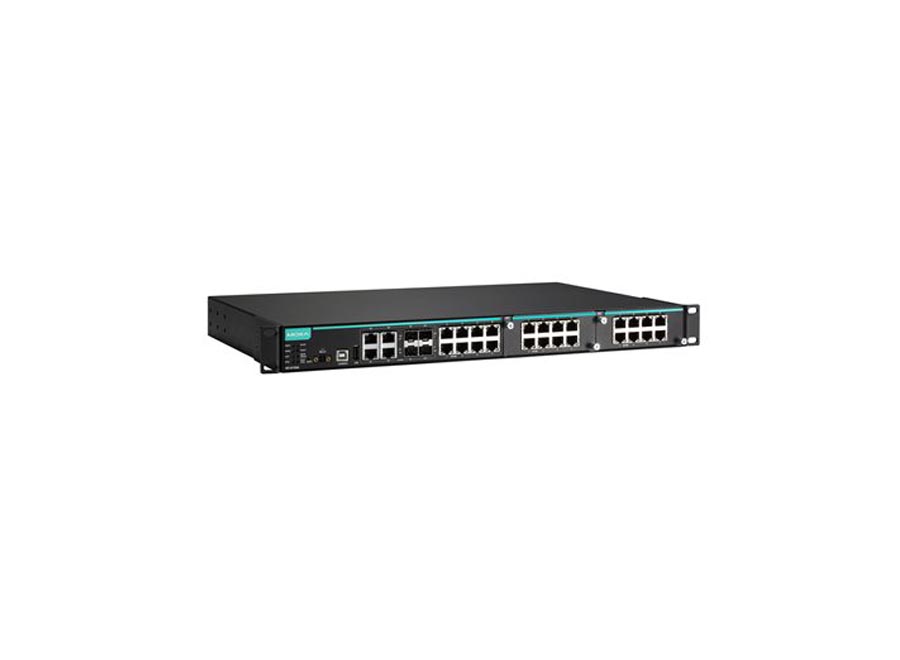

24+4G-port Gigabit modular managed PoE+ Ethernet switches

 ● 8 built-in PoE+ ports compliant with IEEE 802.3af/at (IKS-6728A-8PoE)

 ● Up to 36 W output per PoE+ port (IKS-6728A-8PoE)

 ● Turbo Ring and Turbo Chain

 ● PoE diagnostics for powered-device mode analysis

 ● 4 Gigabit combo ports for high-bandwidth communication

 ● Supports MXstudio for easy, visualized industrial network management


  • Ethernet Port

  • Combo Port

SKU: IKS-6728A-4GTXSFP-HV-HV-T Category:
Switch Type Layer 2 Managed
PoE Switches
Ethernet Interface 8 10/100BaseT(X) Ports
(RJ45 connector)
Fiber Port
PoE Ports Combo Ports 4 Combo Ports
(10/100/1000BaseT(X) or
Input Voltage 110/220 VAC
(redundant dual inputs)
Operating Voltage 85 to 264 VAC Mounting Rack mounting Dimensions 440 x 44 x 280 mm
(17.32 x 1.37 x 11.02 in)
Weight 4100 g (9.05 lb) Housing Operating Temperature -40 to 75°C (-40 to 167°F)
Warranty Period 5 years

The IKS-6728A Series is designed to meet the demands of mission-critical applications for business and industry. The IKS-6728A and IKS-6728A-8PoE come with up to 24 10/100BaseT(X), or PoE/PoE+, and 4 combo Gigabit Ethernet ports. The IKS-6728A-8PoE Ethernet switches provide up to 30 watts of power per PoE+ port in standard mode, and also support high-power output of up to 36 watts for heavy-duty industrial PoE devices, such as weather-proof IP surveillance cameras with wipers/heaters, high-performance wireless access points, and rugged IP phones

IKS-6728A-8PoE Ethernet switches support two types of power input sources: 48 VDC for PoE+ ports and system power, and 110/220 VAC for system power. These Ethernet switches also support a variety of management functions, including STP/RSTP, Turbo Ring, Turbo Chain, PoE power management, PoE device auto-checking, PoE power scheduling, PoE diagnostic, IGMP, VLAN, QoS, RMON, bandwidth management, and port mirroring. The IKS-6728A-8PoE is designed especially for harsh outdoor applications with 3kV surge protection to ensure the uninterrupted reliability of PoE systems

● Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches)  , and STP/RSTP/MSTP for network redundancy

● 1 kV LAN surge protection for extreme outdoor environments

● -40 to 75°C operating temperature range at 720 W full loading

● V-ON™ ensures millisecond-level multicast data and video network recovery
