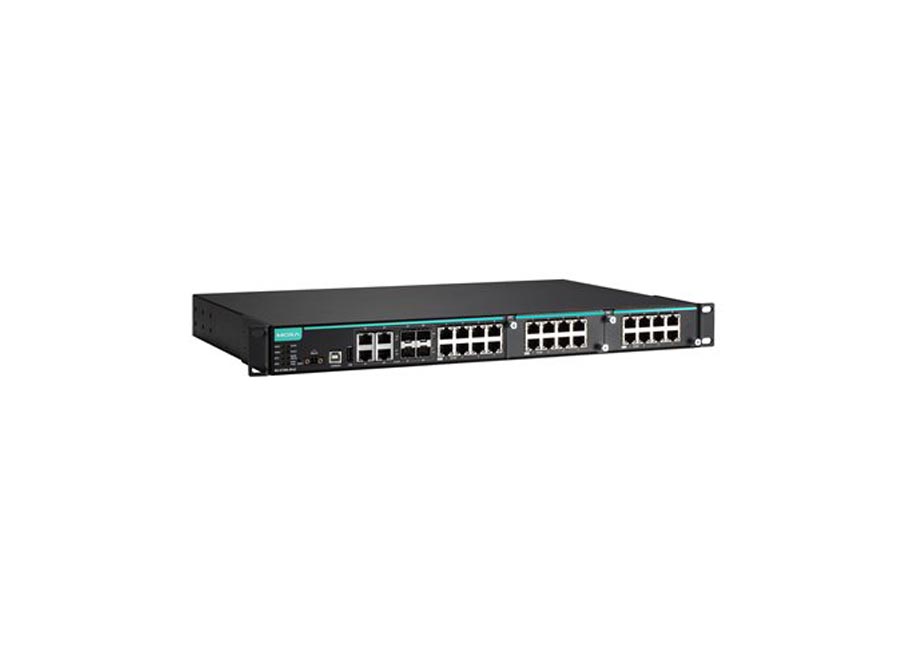

IKS-6728A-8PoE-4GTXSFP-48-48-T
24+4G-port Gigabit modular managed PoE+ Ethernet switches
● 8 built-in PoE+ ports compliant with IEEE 802.3af/at (IKS-6728A-8PoE)
● Up to 36 W output per PoE+ port (IKS-6728A-8PoE)
● Turbo Ring and Turbo Chain
● PoE diagnostics for powered-device mode analysis
● 4 Gigabit combo ports for high-bandwidth communication
● Supports MXstudio for easy, visualized industrial network management
-
Product category
-
sub-category
-
Partner name
-
Series name
Attributes
Ethernet Port
8Combo Port
4
| Switch Type | Layer 2 Managed PoE Switches |
Ethernet Interface | 8 10/100BaseT(X) Ports (RJ45 connector) |
Fiber Port | – |
| PoE Ports | – | Combo Ports | 4 Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP |
Input Voltage | 48 VDC (redundant dual inputs) |
| Operating Voltage | 36 to 72 VDC | Mounting | Rack mounting | Dimensions | 440 x 44 x 280 mm (17.32 x 1.37 x 11.02 in) |
| Weight | 4100 g (9.05 lb) | Housing | – | Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Warranty Period | 5 years |
The IKS-6728A Series is designed to meet the demands of mission-critical applications for business and industry. The IKS-6728A and IKS-6728A-8PoE come with up to 24 10/100BaseT(X), or PoE/PoE+, and 4 combo Gigabit Ethernet ports. The IKS-6728A-8PoE Ethernet switches provide up to 30 watts of power per PoE+ port in standard mode, and also support high-power output of up to 36 watts for heavy-duty industrial PoE devices, such as weather-proof IP surveillance cameras with wipers/heaters, high-performance wireless access points, and rugged IP phones
IKS-6728A-8PoE Ethernet switches support two types of power input sources: 48 VDC for PoE+ ports and system power, and 110/220 VAC for system power. These Ethernet switches also support a variety of management functions, including STP/RSTP, Turbo Ring, Turbo Chain, PoE power management, PoE device auto-checking, PoE power scheduling, PoE diagnostic, IGMP, VLAN, QoS, RMON, bandwidth management, and port mirroring. The IKS-6728A-8PoE is designed especially for harsh outdoor applications with 3kV surge protection to ensure the uninterrupted reliability of PoE systems
● Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches) , and STP/RSTP/MSTP for network redundancy
● 1 kV LAN surge protection for extreme outdoor environments
● -40 to 75°C operating temperature range at 720 W full loading
● V-ON™ ensures millisecond-level multicast data and video network recovery
