IS2000M-130-40-L18

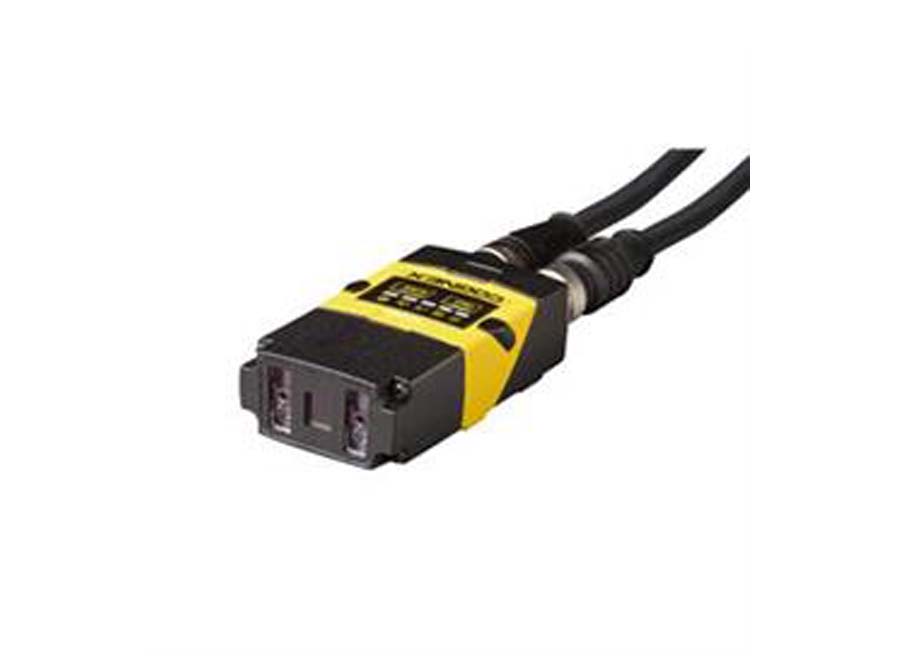

 IN-SIGHT 2000-130M MINI VISION SENSOR

 ● Red LED light

 ● 16 mm liquid lens autofocus

 ● Location tools: Pattern, Edge, Circle

 ● Inspection tools: Pattern, Pixel Count, Brightness, Contrast, Edges

 ● Measurement tools: Distance, Angle, Diameter

Attributes

  • Vision Type

    Vision Sensor
  • Resolution

    0.3 MP
  • Image Sensor

    Monochrome
  • Lens

    16 mm
  • Lens Type

    Auto Focus
SKU: IS2000M-130-40-L18 Category:
Image Sensor Monochrome Image Resolution 640 x 480 Pixels (standard),
640 x 480 Pixels (2x magnification),
800 x 600 Pixels (2x magnification)
Maximum Acquisition Speed 75 fps
Lens 16mm Lens Type Auto-Focus Discrete Inputs 2 opto-isolated
Discrete Outputs 4 opto-isolated Lighting Modular Red LEDs Communications Protocols TCP/IP, UDP, FTP,
Telnet, RS-260C
EtherNet/IP with AOP,
PROFINET, SLMP, SLMP Scanner,
CC-Link IE Field Basic,
Modbus TCP
Power 24 VDC ±10% Material Painted Aluminum Protection IP65

The compact size of the Cognex In-Sight 2000 Mini expands the number of potential application for vision sensors and allows users to deploy vision sensors into more areas of their operation. In-Sight 2000 Mini models are 68% smaller by volume than standard In-Sight 2000 vision sensors, so they can fit into tight spaces. In-Sight 2000 Mini models also come standard with a liquid lens autofocus module, enabling faster job changeovers and the ability to change focus when the sensor is mounted in inaccessible places

Download Datasheet
Download Catalogue
