IS580T030-R1-INT

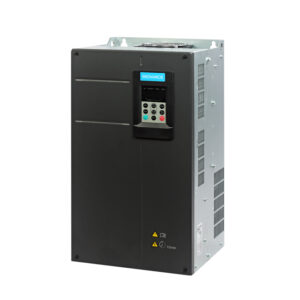

 IS580 High performance hydraulic servo drive for Closed-loop pressure & Flow Control

 ● Servo drive for PMSM

 ● Simplified parameters for easy start up

 ● Output frequency 300Hz

 ● COmmunication (optional) : Modbus-RTU, CANlink / CANopne, PROFIBUS-DP

Attributes

  • Rating (kW)

    15
  • Output Current (Amps)

    32
SKU: IS580T030-R1-INT Category:
KW 15 Rated Input Voltage Three-phase 380 to 480 Vac,
-15% to +10%
Rated input current [A] 45.1
Power capacity [kVA] 39 Rated input frequency 50/60 Hz, ±5% Overload capacity 150% for 60 Sec
& 180% for 2 Sec
Max. output frequency 300 Hz Max. output voltage Three-phase 380Vac to 480 Vac
(Proportional to input voltage)
Output Current 32 Amp
Default carrier frequency, [kHz] 6

Inovance has a range of hydraulic servo drive that provides Closed-loop Pressure and Flow control. Enhanced reliability with conformal coating, and protection against humidity and dust pollution. A wide range of different variants(kW, communication..) helps customers to select the appropriate models according to their machine size.

Download Catalogue
