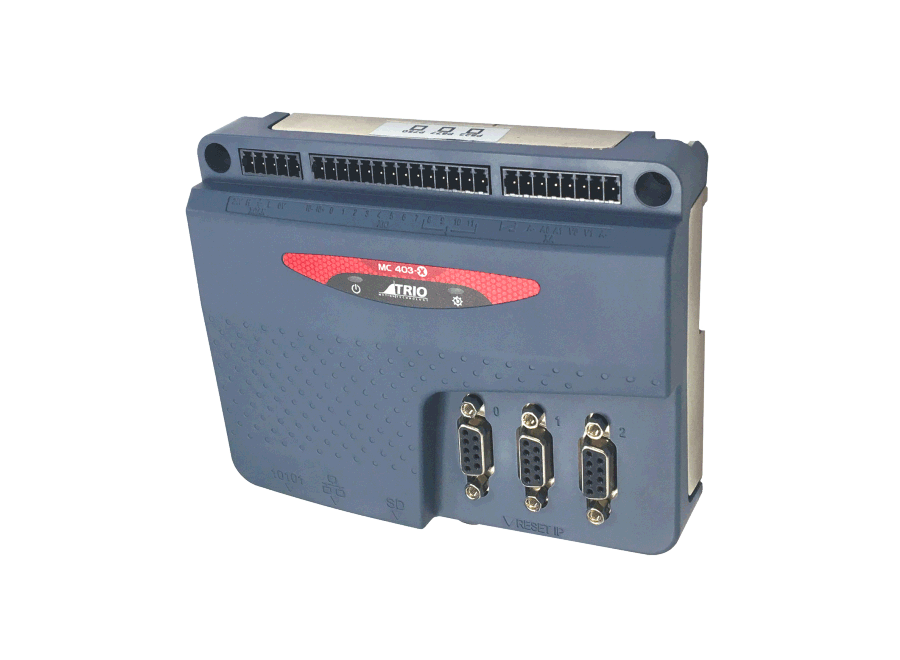

MC403X(P865)
Advanced 2 Axis Stepper controller
● Inbuilt 8/4 Digital I/O, 2/2 Analogue I/O.
● Incremental or Absolute Encoder interface.
● Serial, Trio ActiveX, Ethernet Interface Built-in.
● Flexible CAM, Linked Motion, Interpolation and Robotic Transformations.
-
Product category
-
sub-category
-
Partner name
-
Series name
Attributes
Controller Type
Motion CPUControl Mode
Pulse DirectionCommunication
NA
| Max. Interface per MC664/MC664X | N.A. | Max. Axis on MC664/MC664X | N.A. | Max. Axis per Interface | 1/8″ NPT Female |
| Max. Axis | 2 | Pulse-Dir. Axis | 2 | AS Axis | N.A. |
| Encoder Axis | 2 | Digital I/O | 8-DI 24V PNP 4-Bidirectional IO 24V PNP |
Analogue I/O | 2-AI +/-10VDC 2-AO +/-10VDC |
| Serial Port | 1 | Ethernet Port | 1 | EtherCAT Port | N.A. |
| CANopen Port | 1 | RTEX Port | N.A. | SERCOS II Port | N.A. |
| SLM Port | N.A. | Power Supply | 24V DC | Programming | Trio BASIC & IEC 61131-3 |
| Processor | ARM Cortex-M7 Processor with VFP | Servo Update | 125 to 2000μSec | Motion Commands | Flexible CAM, Linked Motion. Linear, Circular, Helical & Spherical Interpolation. |
| Network Speed | N.A. | Refresh Rate | N.A. | Certification | RoHS, UL & CE |
| Extended Axis | 2 |
