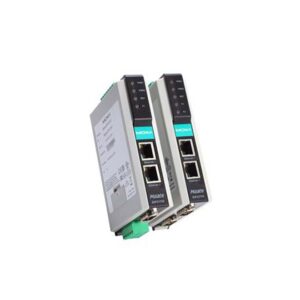

MGate EIP3270I
2-port EtherNet/IP-to-DF1 gateways
● PCCC objects for Rockwell Automation networks supported
● Use ProCOM to implement control via COM port mapping
● 8 simultaneous EtherNet/IP client/server pairs with up to 16 queued requests
● EtherNet/IP and DF1 traffic monitor for easy troubleshooting
● Redundant dual DC power inputs
● Built-in Ethernet cascading for easy wiring
-
Product category
-
sub-category
-
Partner name
-
Series name
Attributes
Protocol Device 1
EtherNet/IPProtocol Device 2
DF1 gateways
| Converter Type | EtherNet/IP Gateways | Protocol from | EtherNet/IP | Protocol to | DF1 gateways |
| Ethernet Port | 2 PORT 10/100BaseT(X) Ports (RJ45 connector) |
Serial Port | RS-232, RS-422 | Input Voltage | 12 to 48 VDC |
| IP | IP30 | Mounting | – | Dimensions | Dimensions (with ears) 29 x 89.2 x 124.5mm (1.14 x 3.51 x 4.90 in) Dimensions (without ears) 29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in) |
| Weight | 380 g (0.84 lb) | Housing | Plastic top cover, metal bottom plate |
Operating Temperature | 0 to 60°C (32 to 140°F) |
| Warranty Period | 5 YEARS |
MGate™ EIP3000 gateways provide Ethernet/IP-to-DF1 protocol conversion for users who need to connect Allen Bradley PLCs to an EtherNet/IP network. With a number of innovative functions, the MGate™ Series overcomes the difficulties of connecting between legacy serial devices and SCADA software. Both 1 and 2-port gateways are available for use with different-sized control networks
● Serial redirector keeps the original serial master and slave connection while connecting devices to the Ethernet
● -40 to 75°C wide operating temperature models available
