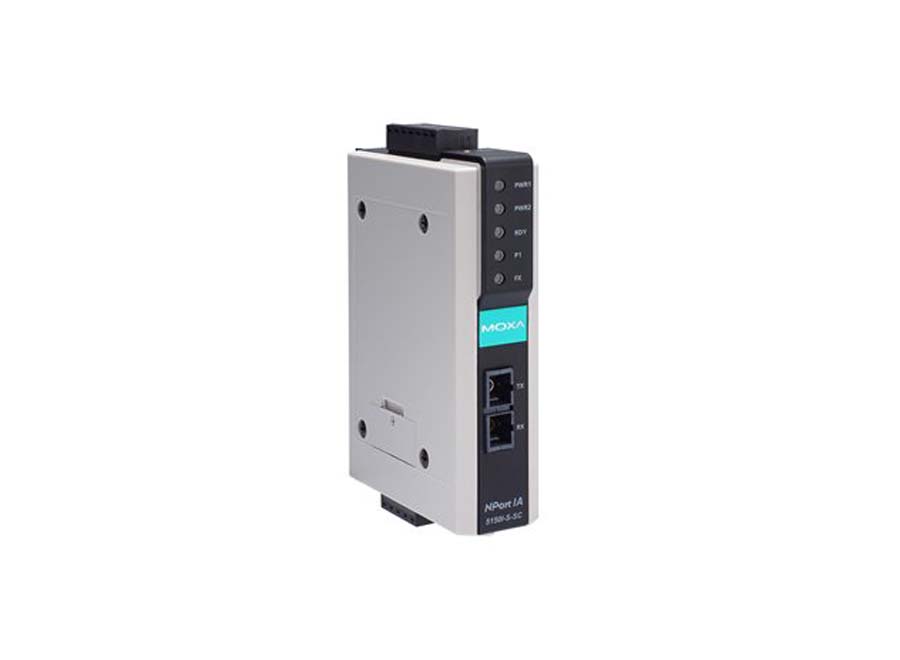

NPort IA-5150-M-SC
1-port serial device servers for industrial automation
● Socket modes: TCP server, TCP client, UDP
● ADDC (Automatic Data Direction Control) for 2-wire and 4-wire RS-485
● Cascading Ethernet ports for easy wiring (applies only to RJ45 connectors)
● Redundant DC power inputs
● Warnings and alerts by relay output and email
● 10/100BaseTX (RJ45) or 100BaseFX (single mode or multi-mode with SC connector)
● IP30-rated housing
-
Product category
-
sub-category
-
Partner name
-
Series name
Attributes
Serial Port
1Ethernet Port
1
| Serial Device Server Type | Industrial Device Servers | Serial Interface | 1 RS-232, RS-422, RS-485 |
Ehthernet Port | 1 100BaseFX Ports (multi-mode SC connector) |
| PoE Ports | – | Combo Ports | – | Input Voltage | 12 to 48 VDC |
| IP | IP30 | Mounting | DIN-rail mounting | Dimensions | 29 x 89.2 x 118.5 mm (0.82 x 3.51 x 4.57 in) |
| Weight | 360 g (0.79 lb) | Housing | Plastic | Operating Temperature | 0 to 60°C (32 to 140°F) |
| Warranty Period | 5 years |
NPort® IA device servers provide easy and reliable serial-to-Ethernet connectivity for industrial automation applications. The device servers can connect any serial device to an Ethernet network, and to ensure compatibility with network software, they support a variety of port operation modes, including TCP Server, TCP Client, and UDP. The rock-solid reliability of the NPort® IA device servers makes them an ideal choice for establishing network access to RS-232/422/485 serial devices such as PLCs, sensors, meters, motors, drives, barcode readers, and operator displays. All models are housed in a compact, rugged housing that is DIN-rail mountable
