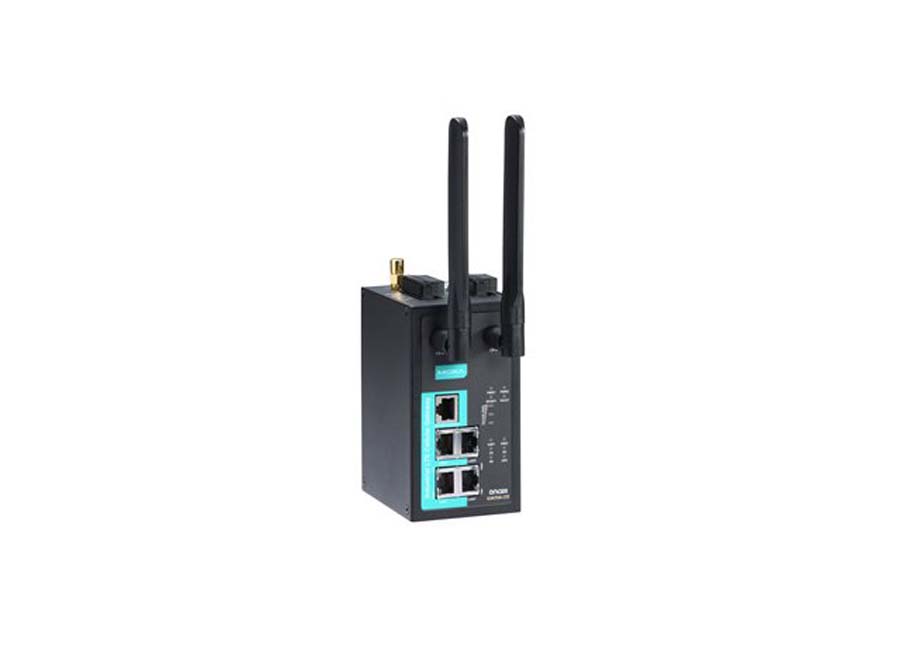

OnCell G3470A-LTE-EU
Industrial LTE Cat. 3 cellular gateways
● LTE band support, EU models: 2100/1800/2600/900/800 MHz (B1/B3/B7/B8/B20)
● LTE band support, US models: 1900/AWS/850/700/700/1900 MHz (B2/B4/B5/B13/B17/B25)
● Built-in high-speed 4-port Ethernet switch
● Industrial design with dual power inputs and built-in DI/DO support
● Cellular link redundancy with dual-SIM GuaranLink support
● Antenna and power isolation design to protect against interference
-
Product category
-
sub-category
-
Partner name
-
Series name
Attributes
Gateway Type
Cellular Gateway
| Device Type | Cellular Gateway | USB Port | – | SIM Card | 2 |
| Ethernet Port | 4 PORT 10/100/1000BaseT(X) Ports (RJ45 connector) |
Serial Port | – | Input Voltage | 12 to 48 VDC, Redundant dual inputs |
| IP | IP30 | Mounting | DIN-rail mounting | Dimensions | 66.3 x 124 x 90 mm (2.61 x 4.88 x 3.54 in) |
| Weight | 1,300 g (2.87 lb) | Housing | Aluminum | Operating Temperature | -30 to 55°C (-22 to 131°F) |
| Warranty Period | 5 years |
Moxa’s OnCell G3470A-LTE Ethernet IP gateway, with LTE band support, provides a higher cellular bandwidth and more reliable connection to your Ethernet network for cellular applications. With an integrated 4-port Gigabit Ethernet switch and LTE support, the OnCell G3470A-LTE offers a faster cellular connection with a lower total cost of ownership. To enhance reliability, a key for industrial users, the OnCell G3470A-LTE provides isolation for both power and antenna inputs. Coupled with high-level EMS and wide-temperature support, the OnCell G3470A-LTE provides the highest level of device stability in any rugged environment. In addition, with dual-SIM and dual-power input features, the OnCell G3470A-LTE offers network redundancy to ensure uninterrupted connectivity for your applications
