Panasonic RTEX(P871)

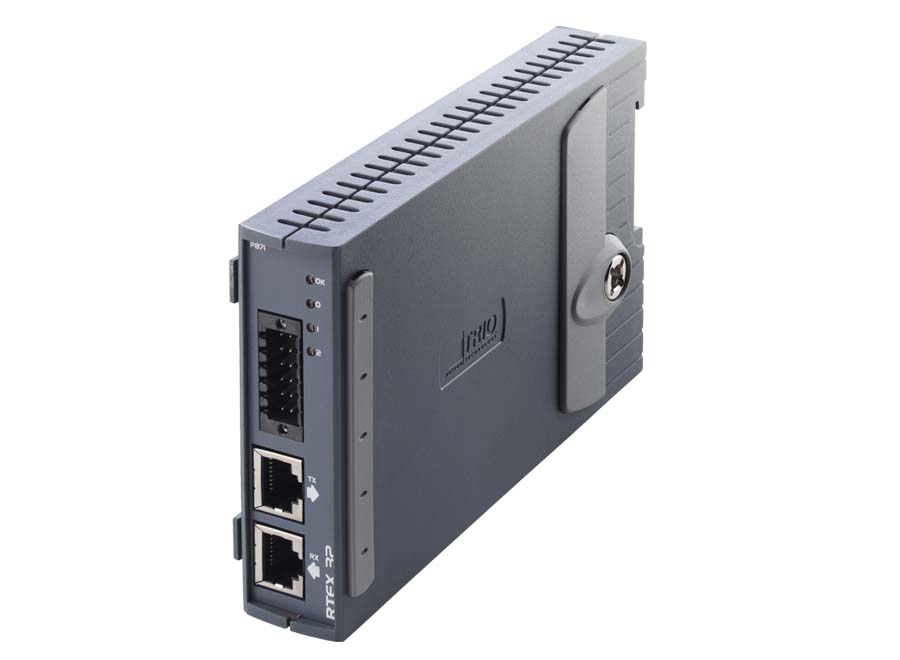

Panasonic RTEX module
● RTEX Network interface for Digital drive.
● Ring topology
● 100Mbps network speed
● Max 32 Axes per interface
-
Product category
-
sub-category
-
Partner name
-
Series name
Attributes
Controller Type
MC664/MC666-X ExpansionsControl Mode
RTEXCommunication
RTEX
| Max. Interface per MC664/MC664X | 7 | Max. Axis on MC664/MC664X | 64 | Max. Axis per Interface | 32 |
| Max. Axis | 64 | Pulse-Dir. Axis | NA | AS Axis | NA |
| Encoder Axis | NA | Extended Axis | NA | Digital I/O | 8-Time based Registration IP |
| Analogue I/O | NA | Serial Port | N.A. | Ethernet Port | N.A. |
| EtherCAT Port | N.A. | CANopen Port | N.A. | RTEX Port | 1 |
| SERCOS II Port | N.A. | SLM Port | N.A. | Power Supply | 24V DC |
| Programming | N.A. | Processor | N.A. | Servo Update | N.A. |
| Motion Commands | N.A. | Network Speed | 100Mbit/sec | Refresh Rate | NA |
| Certification | RoHS, UL & CE |
Panasonic RTEX module is for RTEX Network interface for Panasonic drive. It has a Ring topology. 100Mbps network speed. Max 32 Axes per interface. Max 7 interface can be connected to MC664/MC664X and max 64 Axes can be controlled. It has 8 x24V interpolated time based registration inputs and can be mapped to any Axis.
