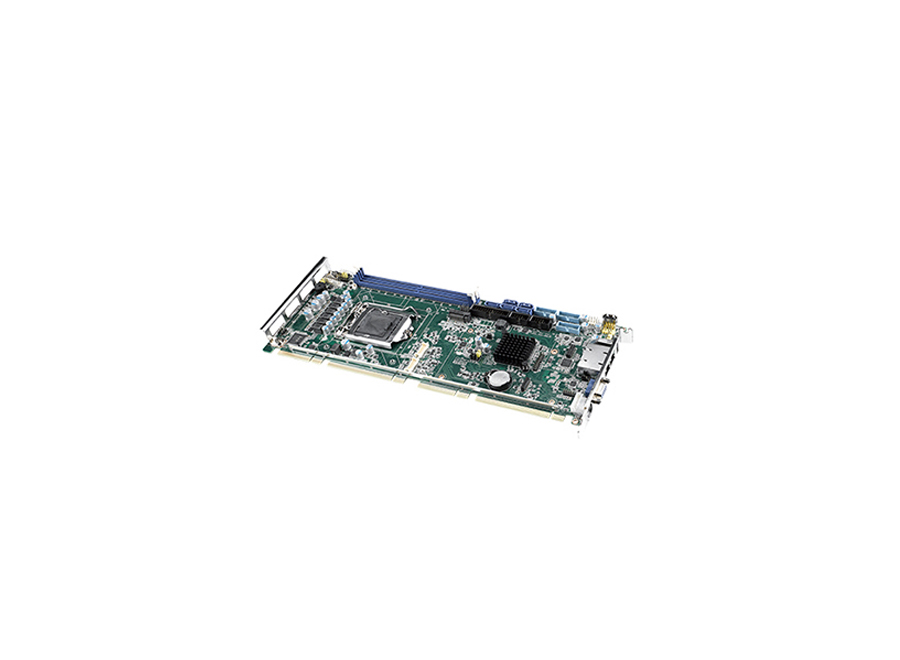

PCE-7131

Form Factor	–	Processor	Intel® Xeon® E Family/Core™ i7/i5/i3 LGA1151 processor	RAID Support	0, 1, 5, 10
RAM	Technology Dual-channel (non-ECC) U-DIMM DDR4 2400/2666 MHz (supports x8 DDR4 1024 M)(Note: Intel ECC-supported processor must be selected to enable ECC function) Max. Capacity up to 64GB (based on CPU) Socket 2 x DDR4 288-pin DIMM	SATA	SATA (SW Raid 0,1,5,10) 5	Expansion Slot	NA
I/O	USB 3.1 Gen2 1 Ethernet 2 VGA 1 PS/2 1 (PS/2 Y cable supports 1 xkeyboard and1 x mouse)	Network	Interface 10/100/1000 Mbps Controller LAN 1: Intel® I219-LM LAN 2: Intel® I210-AT Connector with LED 2 x RJ45	Display Port	VGA Supports resolutions of up to 1920 x 1200 pixel @ 60 MHz DVI-D Supports resolutions of up to 1920 x 1200 pixel @ 60 MHz Display Port Supports resolutions of up to 1920 x 1080 pixel @ 60 Hz
Max Resolution	1920 x 1080	Graphics	Controller Chipset integrated with Intel® HD Graphics VRAM Shared system memory is subject to OS VGA Supports resolutions of up to 1920 x 1200 pixel @ 60 MHz DVI-D Supports resolutions of up to 1920 x 1200 pixel @ 60 MHz Display Port Supports resolutions of up to 1920 x 1080 pixel @ 60 Hz Triple Display VGA+DP/DVI-D+DP/DVI-D	Watchdog Timer	Programmable 1-255 sec
