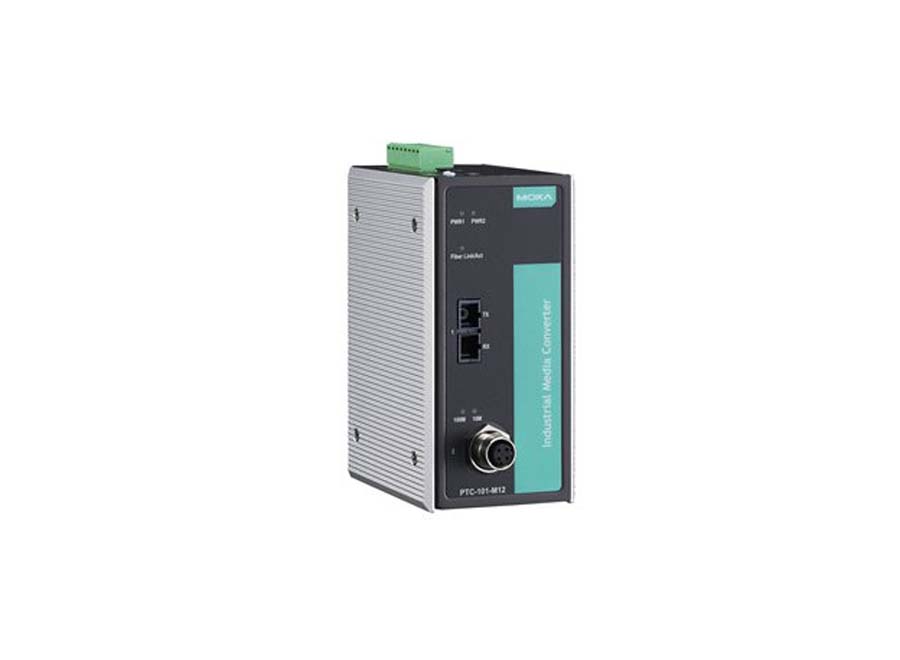

PTC-101-M12-S-SC-LV-T
IEC 61850-3 and railway Ethernet-to-fiber media converters
● 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
● Link Fault Pass-Through (LFPT)
● Power failure alarm by relay output (LV model only)
● -40 to 85°C operating temperature range
● Redundant dual DC power inputs (LV model only)
● Integrated high-reliability power supply eliminates the need for external power transformer
● Compliant with EN 50121-4
● Complies with all EN 50155 mandatory test items
-
Product category
-
sub-category
-
Partner name
-
Series name
Attributes
Ethernet Port
1Fiber Port
1
| Media Converters Type | Ethernet-to-Fiber | Ethernet Interface | 1 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector) |
Fiber Port | 1 100BaseFX Ports (single-mode SC connector) |
| PoE Ports | – | Combo Ports | – | Input Voltage | 20 to 72 VDC |
| IP | – | Mounting | DIN-rail mounting | Dimensions | 152.15 x 126.46 x 66.65 mm (5.99 x 4.86 x 2.62 in) |
| Weight | 690 g (1.52 lb) | Housing | Metal | Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Warranty Period | 5 years |
