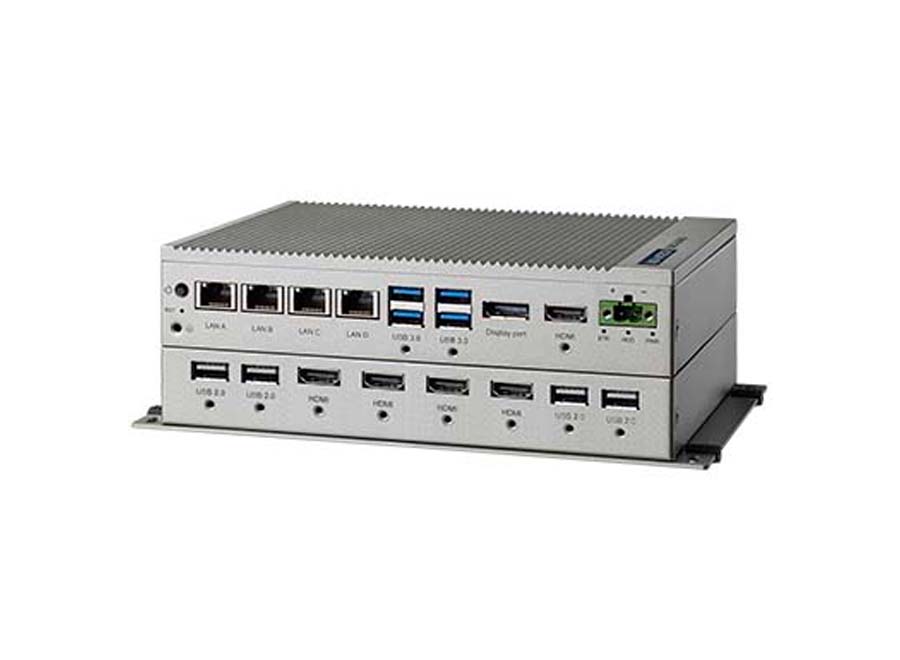

UNO-2484G
Modular Compact Embedded Box PC with 6th/7th Gen Intel® Core™ i CPU
● Intel® Core™ i7/i5/i3/Celeron Processor with 8GB DDR4 built-in Memory
● 4 x GbE, 4 x USB 3.0, 1 x HDMI, 1 x DP, 4 x RS232/422/485
● Stackable 2nd layer for up to 4 iDoor extension or customize for domain applications
● Compact Fanless Design
● Ruggedized by zero cable and lockable I/O design
● Supports 30+ iDOOR combination with four main categories
-
Product category
-
sub-category
-
Partner name
-
Series name
Attributes
Fan Type
FanlessRAID Support
Noi3
NOi5
YESi7
YESi9
NOAtom
NOQuad Core
YESCeleron
NOXeon
NONVIDIA
NOProcessor
Intel Core i7/i5/i3/Celeron Processor
| Cooling | Fanless | Processor | Intel® Quad-core i7/i5/i3/Celeron Processor |
RAID Support | NO |
| RAM | i7/i5/i3 model: Built-in 8GB DDR4 2133 MHz (support up to 16G)Celeron model: Built-in 4GB DDR4 3200 MHz (support up to 16G) |
Storage | One mSATA (slot shared with mPCIe slot) Two drive bay for SATA 2.5" SSD/HDD (Support RAID 0/1) |
Expansion Slot | 1 x full-size mPCIe slot for single stack version (only support wireless iDOOR) 4 x full-size mPCIe slots for double stack version (1 slot for wireless iDOOR, 3 slots for all iDOOR modules) |
| I/O | NA | Network | 4 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000BASE-T Fast Ethernet |
Display Port | 1 x HDMI, 1 x DP HDMI 1.4 (4096×2304@24Hz) HDMI 1.4 (1920×1080@60Hz) DP 1.2 (4096×2304@60Hz) DP 1.2 (1920×1080@60Hz) |
| Max Resolution | NA | Mounting | Stand, wall, VESA (optional), DIN rail (optional) |
Power Supply | 10 ~ 36 VDC |
Advantech new generation UNO-2000 series of Embedded Automation Computers are Fanless with highly ruggedized with embedded operation system. New UNO-2000 series implement Universal, Customized, and Domain idea into modular design concept which provides flexible and time-to-market support in variety of applications. The series also includes iDOOR technology which supports automation feature-extensions such as Multiple I/O Peripheral, Industrial Fieldbus, Smart I/O Communication, and Signal Communication. New UNO-2000 series including pocket, small, and regular-size form-factors with indicated market segments in terms of different kinds of smart factory application categories such as Equipment Connectivity (EC), Process Visualization (PV), Environment Management (EM), and Dispatch Management (DM) solution. New UNO enables smart factory and fulfill all application,Diverse system I/O and Isolated Digital I/O by iDoor Technology, Supports Fieldbus Protocol by iDoor Technology , 3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology with RED Compliance
