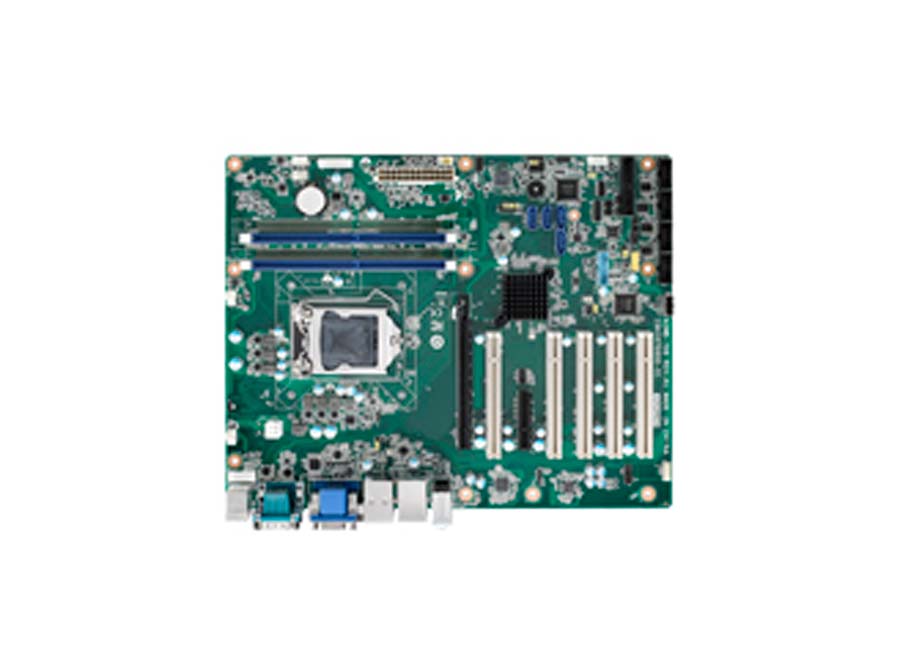

AIMB-706

 Intel® 8th/9th generation Core™ i7/i5/i3/Pentium®/Celeron® processor withH310 chipset

 ● Dual-channel (Non-ECC) DDR4 2400/2666 up to 64 GB

 ● Support VGA and DVI display

 ● SATA 3.0, USB 3.1, dual GbEs

 ● 5 RS-232 and 1 RS-232/422/485 serial ports

Attributes

  • Type

    Industrial Board
  • 3rd Generation

    No
  • 4th Generation

    No
  • 6th Generation

    No
  • 7th Generation

    No
  • 8th Generation

    Yes
  • 9th Generation

    Yes
  • 10th Generation

    No
  • Xeon Processor

    No
  • RAID Support

    No
Form Factor ATX Motherboard Processor i7-8700, i7-8700T, i5-8500,
i5-8500T, i3-8100, i3-8100T,
G5400, G5400T, G4900, G4900T
RAID Support No
RAM Max Capacity 32 GB (16 GB per DIMM) SATA Max Data Transfer Rate 600 MB/s
Channel 4
Expansion Slot PCI 32-bit/33 MHz, 5 slots
PCIe x4 (Gen 2) 2 GB/s per direction, 1 slot
PCIe x16 (Gen 3) 16 GB/s per direction, 1 slot
I/O VGA 1 (Resolution up to 1920 x 1200 @ 60 Hz)
DVI 1 for G2 version (Resolution up to 1920 x 1200 @ 60 Hz)
Ethernet 2 for G2 version; 1 for VG version
USB 4 (2 x USB 3.1 Gen 1, 2 x USB 2.0)
Audio 2 (Line-out, Mic-in), Serial 2 (RS-232)
PS/2 2 (1 x keyboard and 1 x mouse)
Network Interface 10/100/1000 Mbps
Controller GbE LAN1: Intel I219-V,
GbE LAN2: Intel I211-AT
Connector 2 x RJ-45
Display Port VGA 1 (Resolution up to 1920 x 1200 @ 60 Hz)
DVI 1 for G2 version (Resolution up to 1920 x 1200 @ 60 Hz)
Max Resolution VGA 1 (Resolution up to 1920 x 1200 @ 60 Hz)
DVI 1 for G2 version (Resolution up to 1920 x 1200 @ 60 Hz)
Graphics Chipset integrated Intel HD Graphics Watchdog Timer Programmable 1 ~ 255 sec

With ATX form factor, Advantech AIMB Series are well-accepted motherboards offering the most expansion capability for industrial applications. AIMB-706 motherboard is LGA1151 8th / 9th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® ATX with DVI/VGA, DDR4, SATA 3.0, USB 3.1 & 6 COMs
