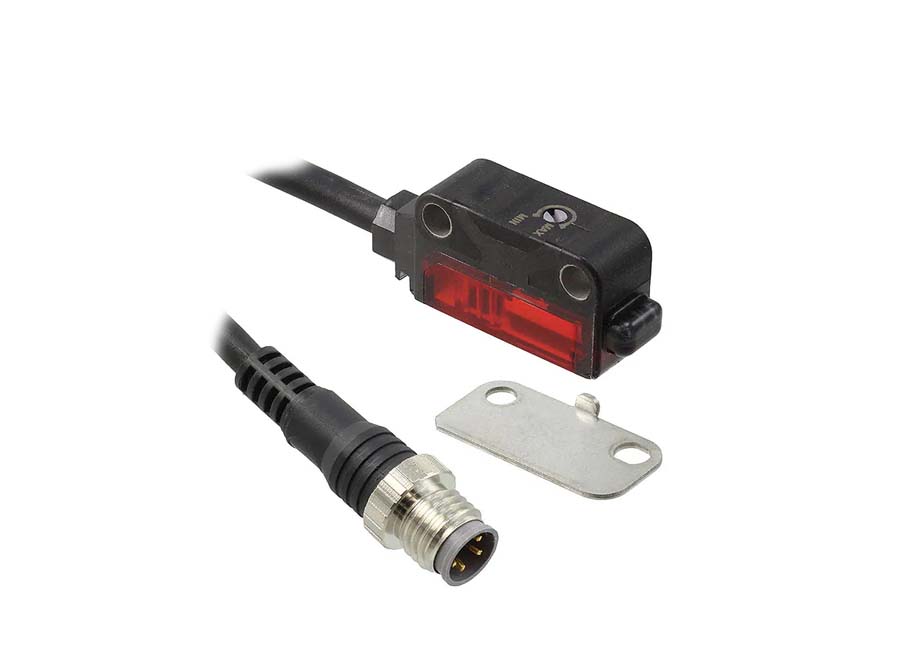

EX-L221-P-J

 Amplifier Built-in Ultra-Compact Laser Sensor

 ● Diffuse Type (Spot Reflective),

 ● Sensing Range : 45 to 300 mm,

 ● Output : PNP,

 ● M8 Pigtailed Type

Attributes

  • Sensor Type

    Laser Sensor (Amplifier Built-in)
  • Type

    Diffuse
  • Shape

    Rectangular
  • Sensing Range

    45 to 300 mm
  • Output

    PNP
  • Connection Type

    M8 Pigtailed Type
SKU: EX-L221-P-J Category:
Type Diffuse Shape Rectangular Sensing Range 45 to 300 mm
Repeatability 0.02 mm Digital Dispaly Output PNP
Output Operation L-ON /
D-ON Selectable
Input supply 12 to 24 VDC Emitting Element Red Semiconductor
Laser Class 1
Connection Type M8 Pigtailed Type Sensing Object Size > ø0.01 mm Beam Spot Diameter ø1 mm at 300 mm
Timer Function Response Time < 0.5 ms Enclosure Polybutylene
terephthalate
Protection IP67 (IEC) Particular Characteristics Minute Object Detection

Due to the customized IC and optical design, high precision detection is fulfilled with directivity and visibility achievable only by laser. The laser adopted is Class 1 (IEC / JIS / FDA / GB) laser that is safe to use, so that there is no need to separate the areas of sensor usage.  Light aberrations are reduced and a high definition laser spot is possible by incorporating a molded aspheric glass lens. Due to convergent distance sensing, the background has very little effect, enabling stable sensing. Sensitivity adjuster allows you to adjust sensitivity to avoid sensing background objects when the distance between the workpiece and background objects is small. Able to reliably sense unevenly-colored workpieces. The sensor can be used even in environment where water or dust present because of its protection structure IP67
