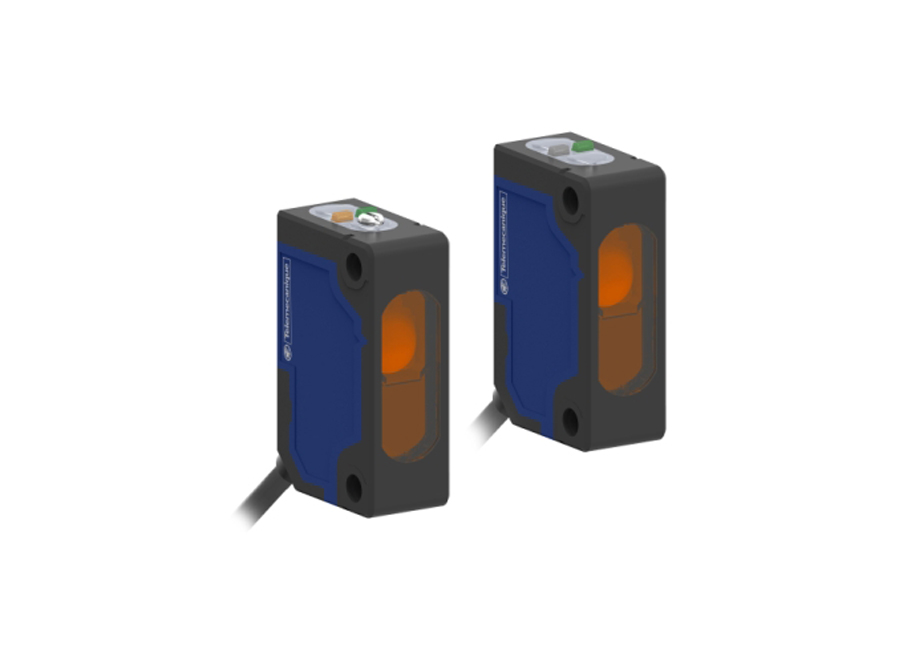

XUM2ANXBL2
Photoelectric Sensor
● Thru-beam Type
● Sensing Range : 30m
● Output : NPN o/p
● Fixed Cable, 2m
● Emitting Element : Red LED
-
Product category
-
Partner name
-
Series name
Attributes
Type
Thru-beamSensing Range
30 mOutput
NPNEmitting Element
Red LEDConnection Type
Fixed Cable, 2m
Type | Thru-beam | Shape | Rectangular | Sensing Range | 30 m |
Sensitivity Adjuster | Yes | Output | NPN | Output Operation | L-ON / D-ON Selectable |
Input supply | 12 to 24 VDC | Emitting Element | Red LED | Connection Type | Fixed Cable, 2m |
Max. Switching frequency | 1000 Hz | Enclosure | PBT | Protection | IP65, IP67 |
● Fast detection with a switching frequency at 1KHz and a response time at 0.5ms to increase production rates
● Anti-interference mode allows side-by side mounting of 2 sensors for complete coverage over wide areas
● Highly immune to bright environments, detecting even in 40k lux sunlight and 10k lux incandescent lamp light
● Reduce inventory and cut stock management cost with a simpler range
● Available with adjustable sensitivity
● Potentiometer setting for NO/NC
● DC-3 Wire, Solid-state Output
